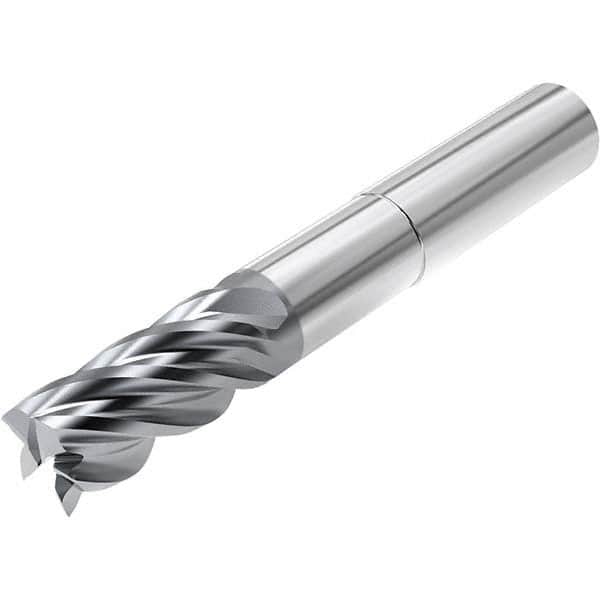

Square End Mill: 3/4'' Dia, 1.139'' LOC, 3/4'' Shank Dia, 6'' OAL, 5 Flutes, Solid Carbide Single End, AlCrN Finish, Helical Flute, 40 ° Helix, Centercutting, RH Cut, RH Flute, Series STSN540
Item #: 95496162
Brand: Niagara Cutter
Model #: 03257959
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | AlCrN |
| Overall Length (Inch) | 6 |
| Helix Angle | 40 |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | Yes |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Length of Cut (Decimal Inch) | 1.1390 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Length Type | Extra Long |
| Neck Length (Decimal Inch) | 4.1250 |
| Reach Length (Inch) | 2.9940 |
| Reach Length (Decimal Inch) | 2.9940 |
| Series | STSN540 |
