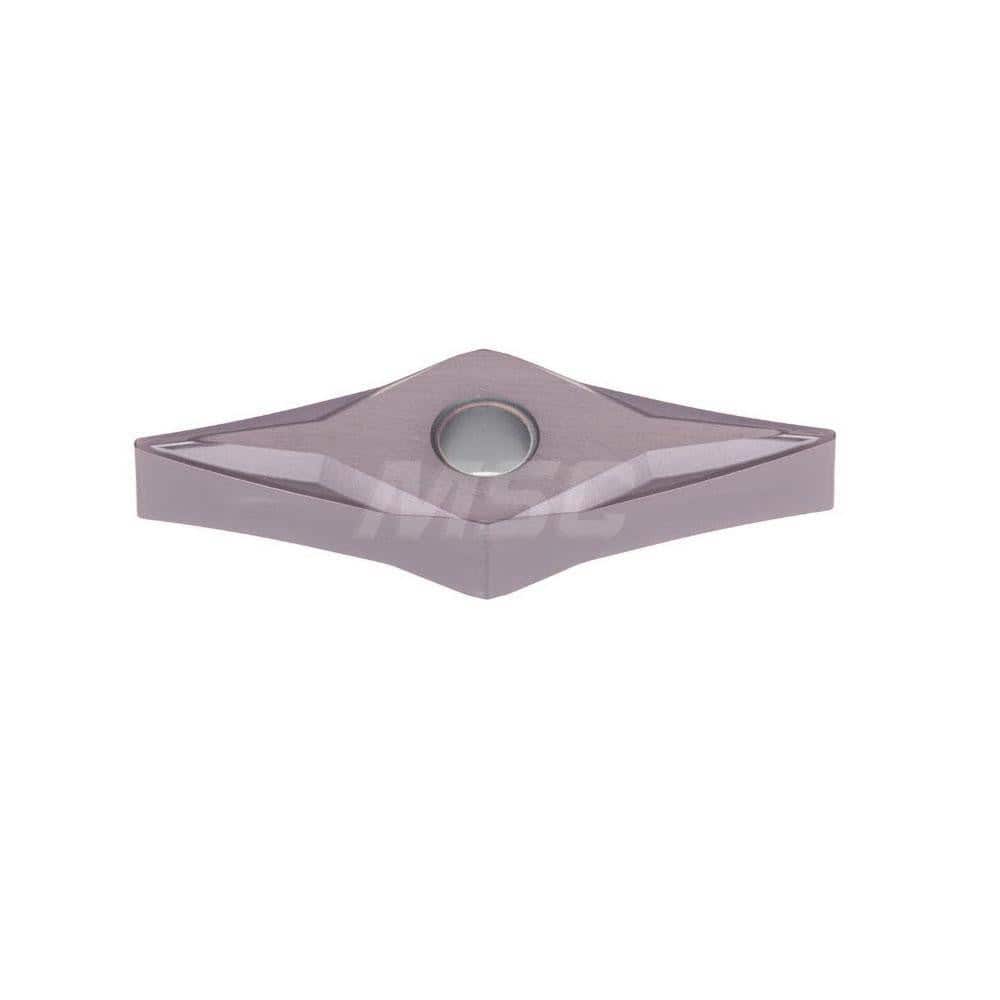

Turning Insert: VNMG331-28 AH8005, Solid Carbide TiAlN Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 35.0 ° N/A Diamond, Series VNMG
Item #: 95489753
Brand: Tungaloy
Model #: 6775770
Product Specifications
| Insert Style | VNMG |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH8005 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | VNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H |
| Ansi Code | VNMG33128AH8005 |
| Iso Code | VNMG160404-28 AH8005 |
| Chip Breaker | 28 |
| Coating/Finish | TiAlN |
