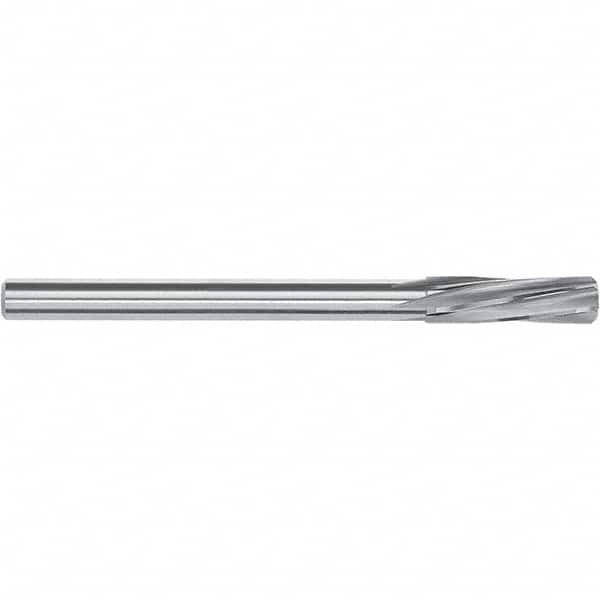

Magafor - 9.88mm Solid Carbide 6 Flute Chucking Reamer - Spiral Flute, 10mm Straight Shank, 38mm Flute Length, 133mm OAL
Item #: 95395075
Brand: Magafor
Model #: 88860009880
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 9.88 |
| Reamer Diameter (Decimal Inch) | 0.3889 |
| Reamer Material | Solid Carbide |
| Shank Type | Straight |
| Flute Type | Spiral |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2360 |
| Flute Length (mm) | 38.00 |
| Flute Length (Decimal Inch) | 1.4960 |
| Number of Flutes | 6 |
| Maximum Shank Diameter (mm) | 10.00 |
| Maximum Shank Diameter (Decimal Inch) | 0.3940 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Through Coolant | No |
| Additional Information | 45 Chamfer Lead; DIN 212-B; NFE 66014 |
