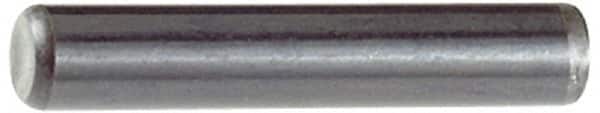

Holo-Krome - 1/8" Diam x 3/4" Pin Length 4000 Alloy Steel Oversized Dowel Pin - Black Luster Finish, C 47-58 & C 60 (Surface) Hardness, 1 Beveled & 1 Rounded End
Item #: 95365565
Brand: Holo-Krome
Model #: 03008
Exact Tooling IR#: 04
Features and Benefits
Oversized types are 0.001 inches larger than standard dowel pins. They are ideal for fastening into out-of-round holes or softer materials.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| Type | Oversized |
| Material | Alloy Steel |
| Pin Diameter (Inch) | 1/8 |
| Pin Length (Decimal Inch) | 0.7500 |
| Pin Length (Inch) | 3/4 |
| Hardness | C 47-58; C 60 (Surface) |
| Fastener Standard | ASME B18.8.2 |
| Material Grade | 4000 |
| Finish/Coating | Black Luster |
| System of Measurement | Inch |
| Oversize or Undersize Amount (Decimal Inch) | 0.0010 |
| End Type | (1) Beveled; (1) Rounded |
| Diameter Tolerance (Decimal Inch) | 0.0010 |
