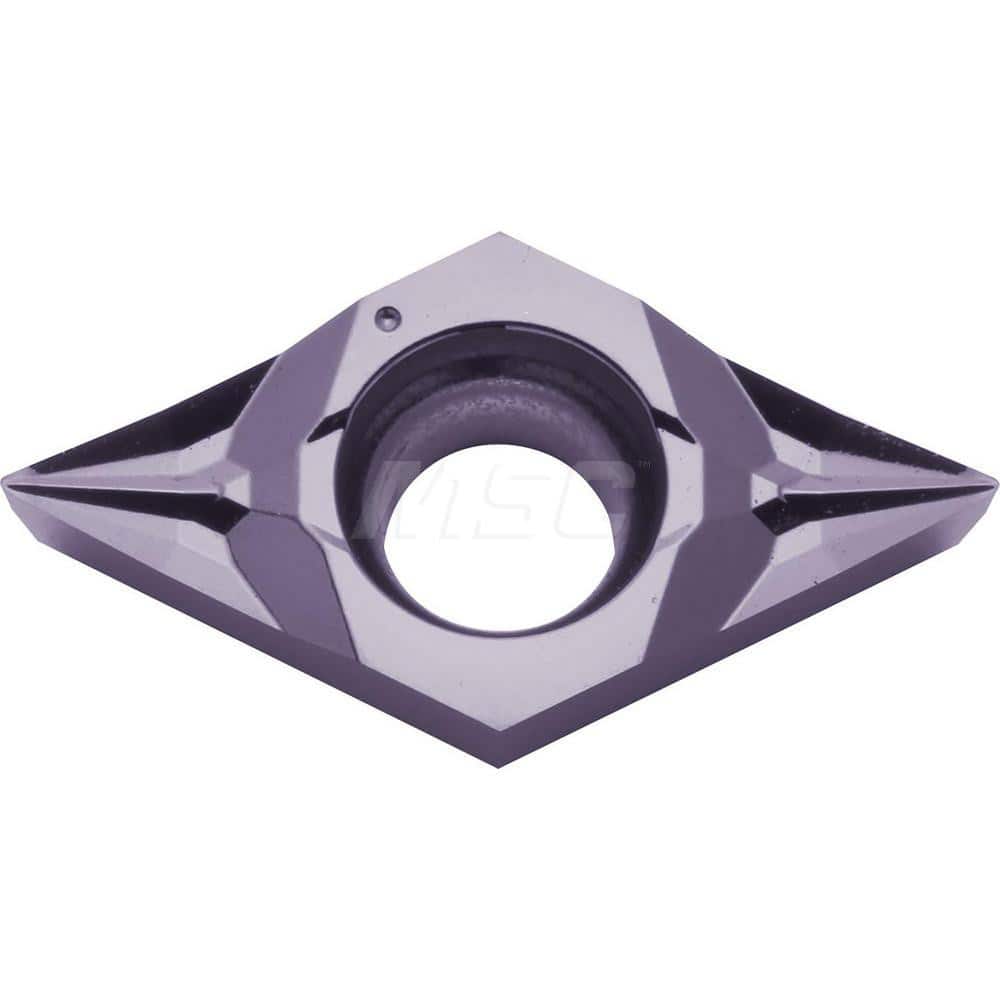

Kyocera DCGT 32505MFPSK PR1535 Grade PVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel
Item #: 95355210
Brand: Kyocera
Model #: TLC03461
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 32505 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1535 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | S; M |
| Iso Code | DCGT11T302MFP-SK |
| Manufacturers Catalog Number | DCGT32505MFPSKPR1535 |
| Chip Breaker | SK |
| Style | DCGT |
| Full Radius | No |
| Coating/Finish | Megacoat Nano |
| Multi-Use Application | External Turning; Back Boring; Copying; Sub-Spindle |
