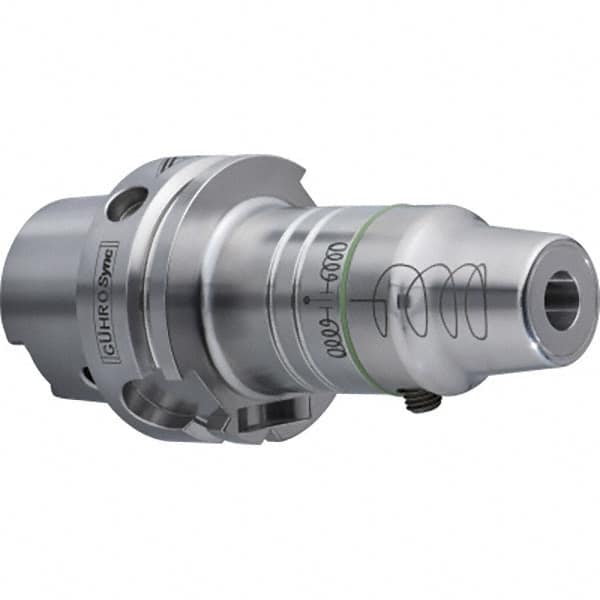

Guhring - 40mm Metric HSK63A Taper Shank Diam Tension & Compression Tapping Chuck - 6 to 16mm Tap Capacity, 120.5mm Projection
Item #: 95231254
Brand: Guhring
Model #: 9046040200630
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | Metric |
| Minimum Tap Capacity (mm) | 6.00 |
| Maximum Tap Capacity (mm) | 16.00 |
| Projection (mm) | 120.50 |
| Minimum Collet Capacity (mm) | 8.00 |
| Maximum Collet Capacity (mm) | 20.00 |
| Hole Diameter (mm) | 20.00 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Collet Series | 4604 |
| Holder Series | Guhro Sync |
| Tension (mm) | 0.30 |
| Compression (mm) | 0.30 |
