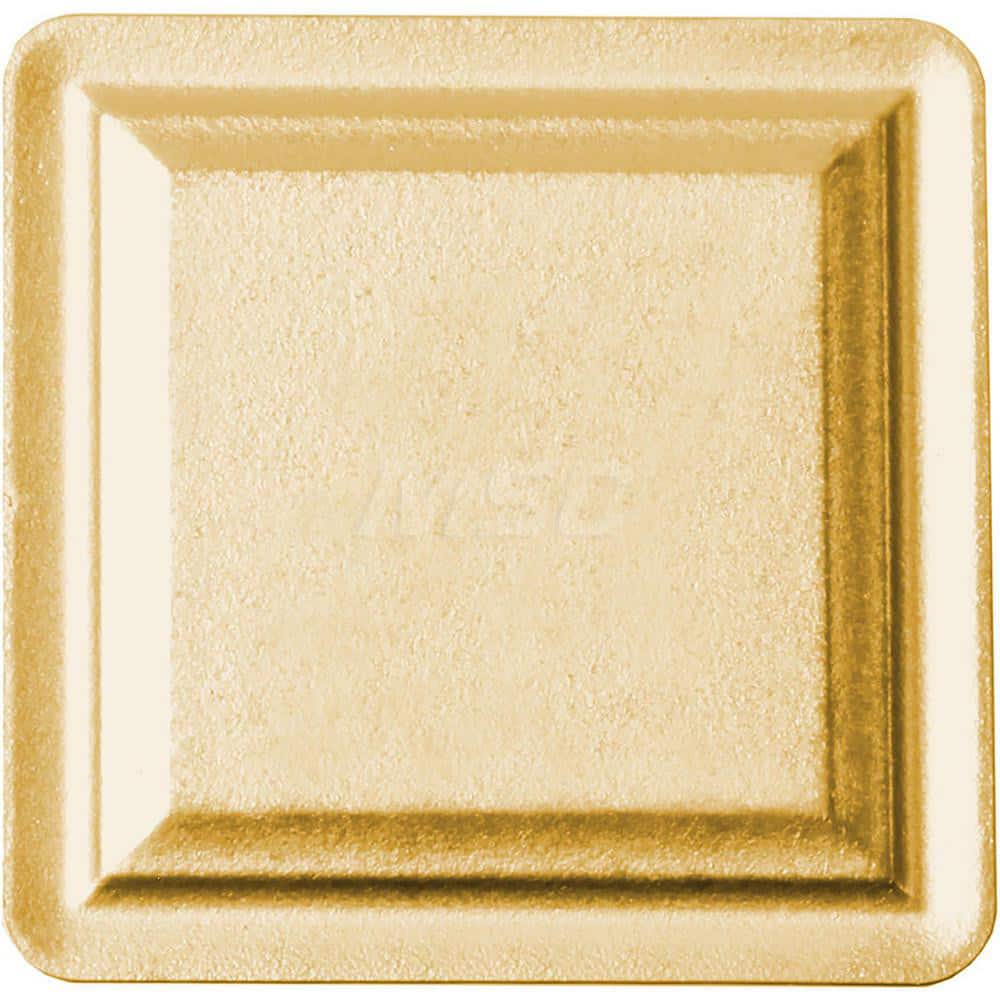

Kyocera SPMR 321 CA5525 Grade CVD Carbide, 11 Degree, Square, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel
Item #: 95070561
Brand: Kyocera
Model #: TJR05480
Product Specifications
| Insert Style | SPMR |
| Insert Shape Code | S |
| Insert Size Code | 321 |
| Insert Shape | Square |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA5525 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 90.0 |
| Relief Angle | 11 |
| Rake | Positive |
| Insert Length (Inch) | 3/8 |
| Primary Workpiece Material | P |
| Iso Code | SPMR090304 |
| Manufacturers Catalog Number | SPMR321CA5525 |
| Chip Breaker | R |
| Style | SPMR |
| Full Radius | No |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | External Turning; Chamfering; Facing; Boring |
