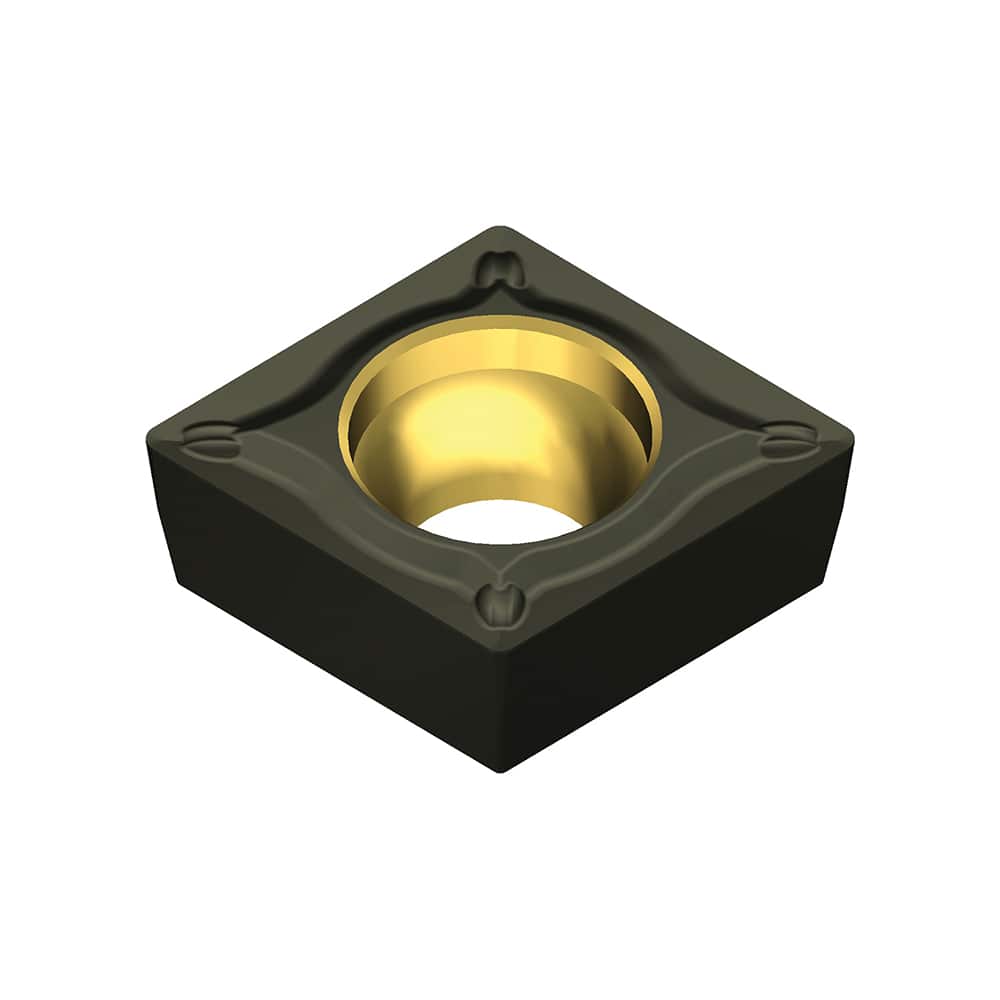

CCMT432EGU-AC4015K Carbide Turning Insert Al2O3/TiCN Finish, 12.9mm Long, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 0.1874″ Thick, 80° Included Angle, Series AC4000K
Item #: 94966082
Brand: Sumitomo
Model #: 19T2DCQ
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC4015K |
| Hole Diameter (Decimal Inch) | 0.2166 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | AC4000K |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (Decimal Inch) | 0.5079 |
| Insert Length (mm) | 12.90 |
| Iso Code | CCMT120408N-GU |
| Manufacturers Catalog Number | CCMT432EGU-AC4015K |
| Chip Breaker | EGU |
| Coating/Finish | TiCN; Al2O3 |
