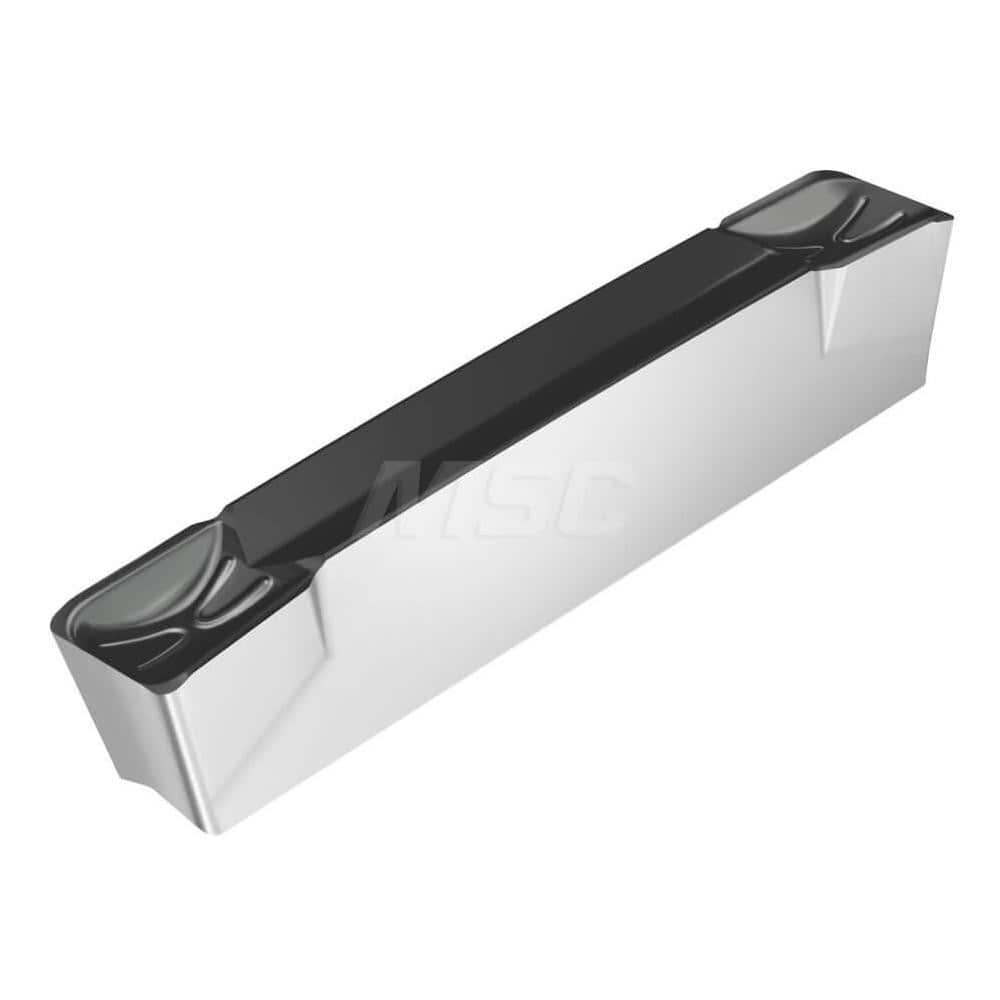

Grooving Insert: GX34GD6 WSM33S, Solid Carbide Al Finish, Neutral, 0.118″ Cutting Width, Series Tiger-tec Silver

Grooving Insert: GX34GD6 WSM33S, Solid Carbide Al Finish, Neutral, 0.118″ Cutting Width, Series Tiger-tec Silver


Item #: 94943289
Brand: Walter
Model #: 7318900

Product Specifications

Insert Style GX34
Insert Size Code 2E300N03
Insert Material Solid Carbide
Manufacturer Grade WSM33S
Cutting Width (Decimal Inch) 0.1180
Maximum Depth of Cut (mm) 32.00
Insert Hand Neutral
Corner Radius (Decimal Inch) 0.0120
Multi-use Tool Yes
Cutting Tool Application Grooving; Parting
Series Tiger-tec Silver
Coating Process PVD
Overall Length (Decimal Inch) 1.3390
Primary Workpiece Material Superalloy
Primary Workpiece Material Code P; S; M
Ansi Code GX342E300N03GD6 WSM33S
Iso Code GX342E300N03GD6 WSM33S
Standards ISO; ANSI
Manufacturers Catalog Number GX34-2E300N03-GD6 WSM33S
Chip Breaker GD6
Coating/Finish Al
$37.32
