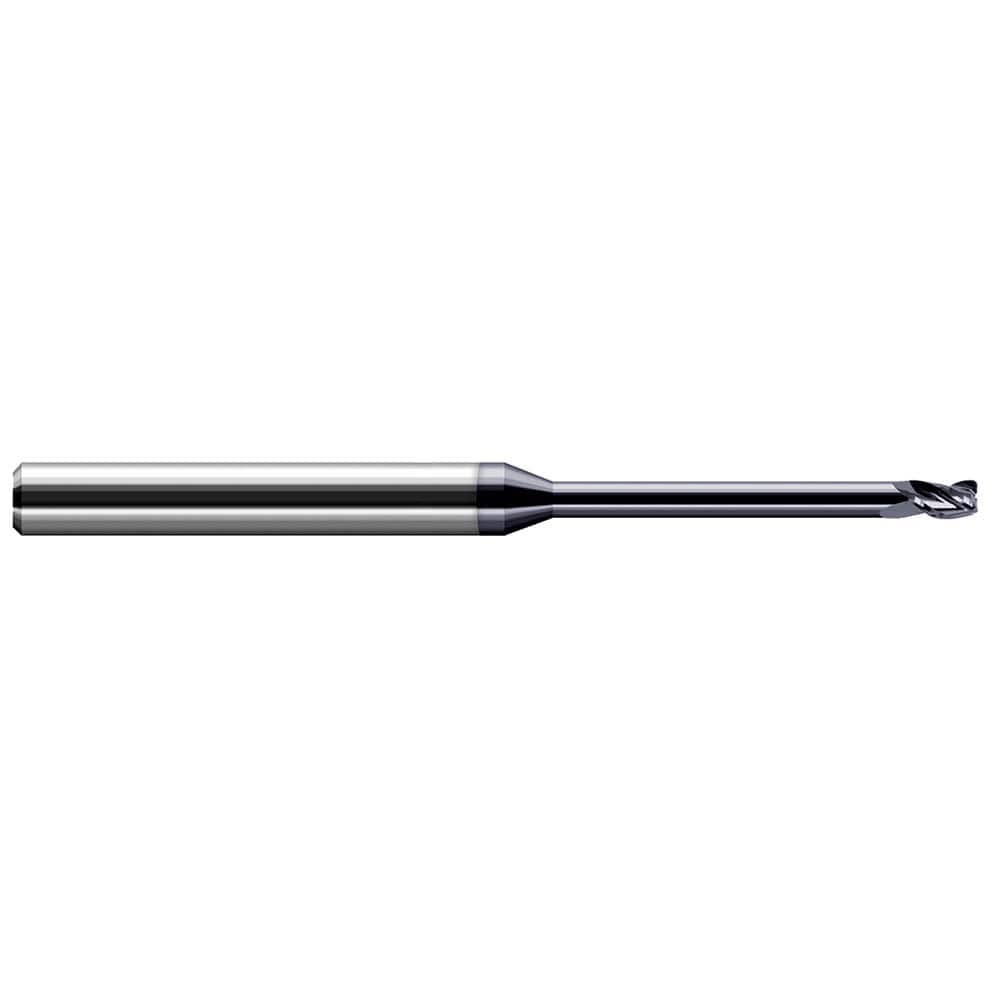

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/32 ; Mill Diameter (Decimal Inch): 0.1562 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 3 ; Material: Solid Carbide
Item #: 94936598
Brand: Harvey Tool
Model #: 965710-C3
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/32 ; Mill Diameter (Decimal Inch): 0.1562 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 3 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/32 |
| Mill Diameter (Decimal Inch) | 0.1562 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 15/64 |
| Length of Cut (Decimal Inch) | 0.2340 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 3 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Reach Length (Decimal Inch) | 1.5700 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Miniature End Mills - Corner Radius - Long Reach, Stub Flute |
