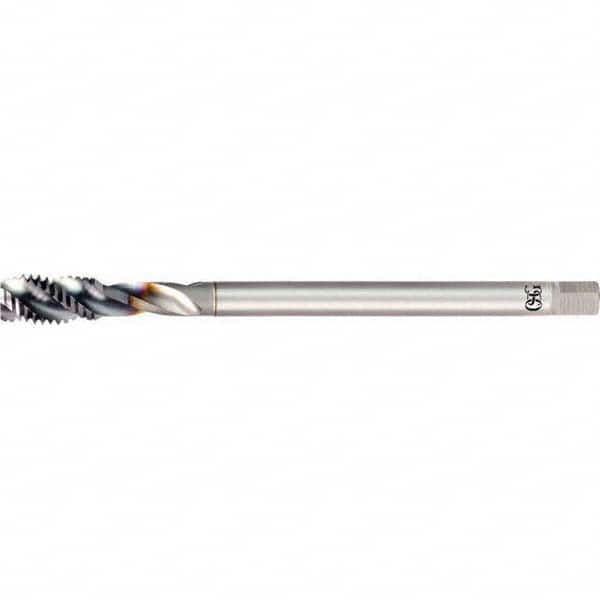

Spiral Flute Tap: #5-40, UNC, 2 Flute, 2-3 P, Normal Class of Fit, VC-10, V Finish 0.201″ Thread Length, 3.93″ OAL, Right Hand Flute, Right Hand Thread, H2, Series 16525
Item #: 94912060
Brand: OSG
Model #: 1652500308
Product Specifications
| Material | VC-10 |
| Coating/Finish | V |
| Thread Size (Inch - 0 Decimals) | #5-40 |
| Thread Standard | UNC |
| Thread Limit | H2 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.2010 |
| Overall Length (Decimal Inch) | 3.9300 |
| Chamfer | 2-3 P |
| Flute Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Neck Length (Decimal Inch) | 0.7090 |
| Tapping Depth (Decimal Inch) | 0.7090 |
| Square Length (Decimal Inch) | 0.1890 |
| Series | 16525 |
| Helix Angle Range | 15 to 45 |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
| Class Of Fit | Normal |
