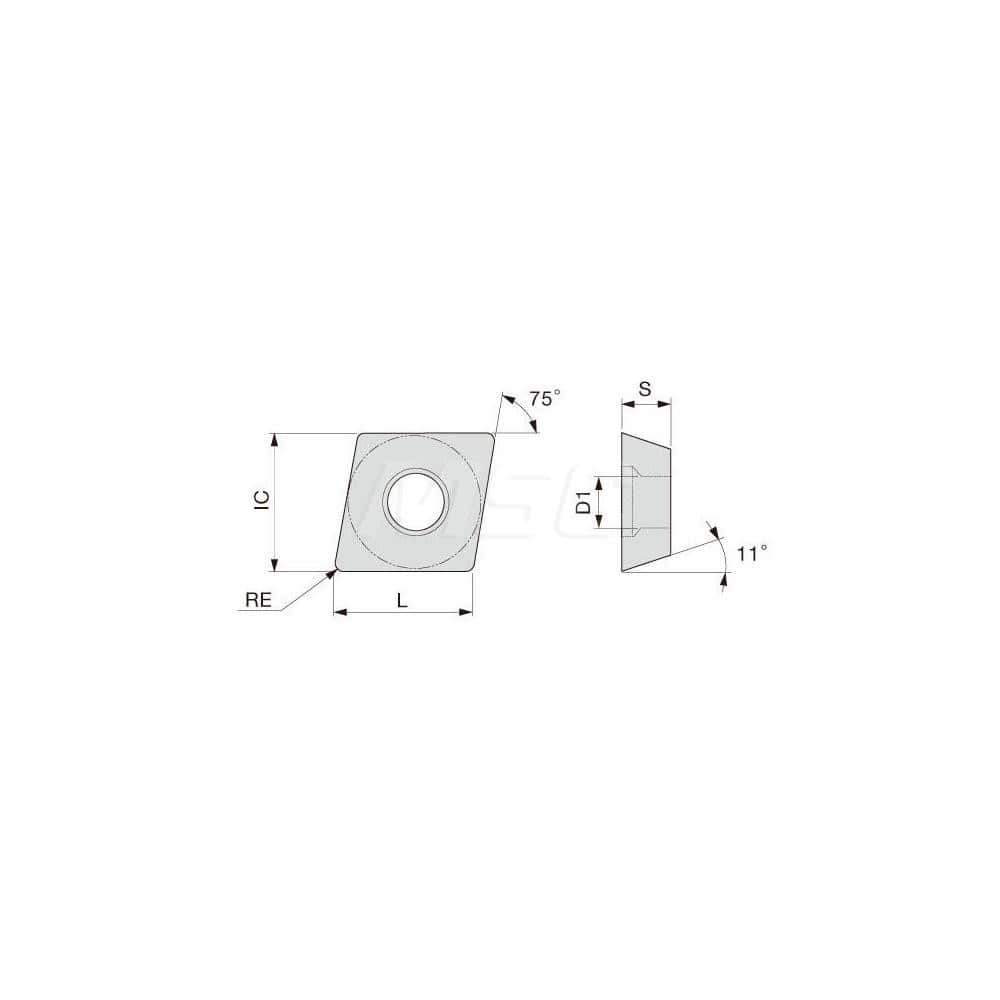

Turning Insert: EPGT4.51.81F-JS SH725, Solid Carbide TiAlN Finish, Neutral, 0.0160″ Corner Radius, 75.0 ° N/A Diamond, Series EPGT
Item #: 94796752
Brand: Tungaloy
Model #: 6737290
Product Specifications
| Insert Style | EPGT |
| Insert Size Code | 4.51.81 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | SH725 |
| Hole Diameter (Decimal Inch) | 0.0750 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Decimal Inch) | 0.1410 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0550 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 75.0 |
| Relief Angle | 11 |
| Series | EPGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | EPGT4.51.81FJSSH725 |
| Iso Code | EPGT03X104F-JS SH725 |
| Chip Breaker | JS |
| Coating/Finish | TiAlN |
