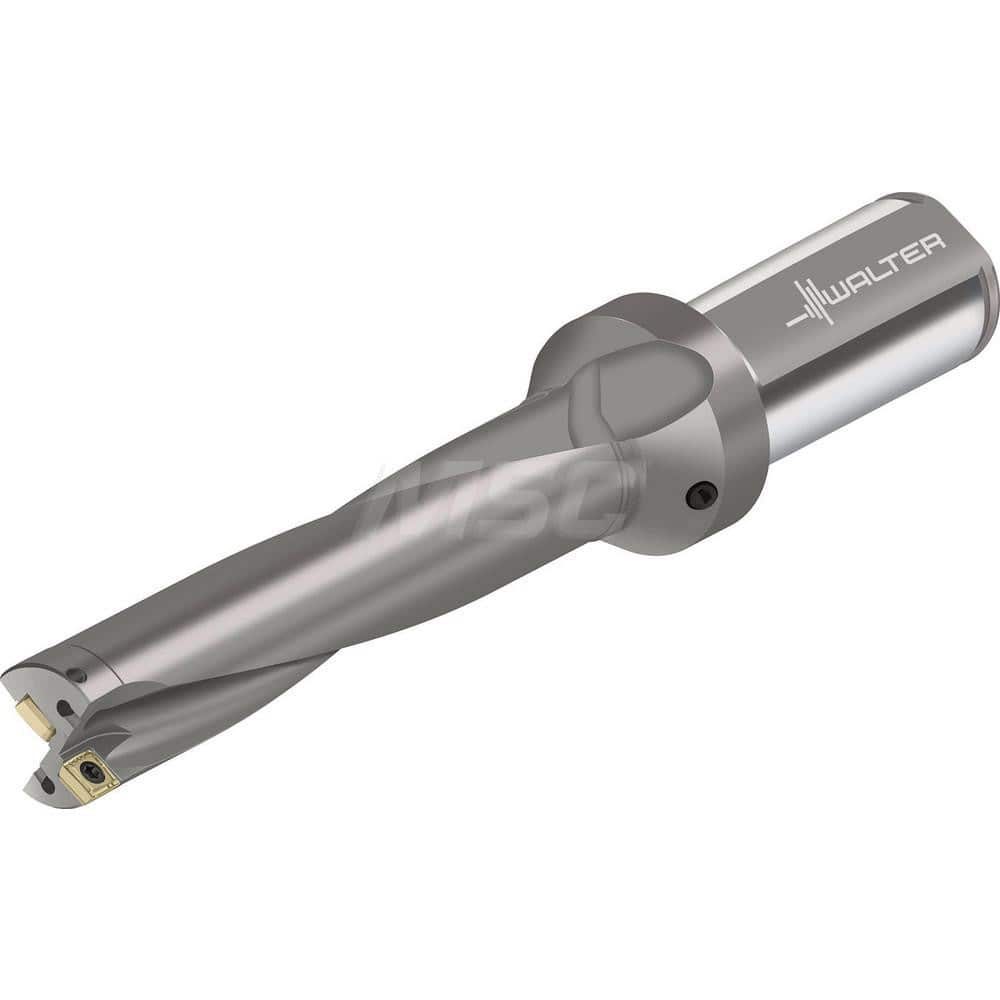

Indexable Insert Drills; Drill Style: D4120; Drill Diameter (Decimal Inch): 1.1250; Drill Diameter (mm): 28.57; Maximum Drill Depth (Decimal Inch): 5.6250; Maximum Drill Depth (mm): 143.00; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1-1/4; S
Item #: 94739539
Brand: Walter
Model #: 6929711
Product Specifications
| Drill Style | D4120 |
| Drill Diameter (Decimal Inch) | 1.1250 |
| Drill Diameter (mm) | 28.57 |
| Maximum Drill Depth (Decimal Inch) | 5.6250 |
| Maximum Drill Depth (mm) | 143.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484 |
| Drill Depth by Diameter Ratio | 5xD |
| Flute Length (Decimal Inch) | 6.6180 |
| Flute Length (mm) | 168.10 |
| Body Length | 171.21 |
| Body Length (Decimal Inch) | 6.7410 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank Length (mm) | 57.94 |
| Overall Length/Projection (Decimal Inch) | 9.0360 |
| Overall Length/Projection (mm) | 229.52 |
| Coolant Through | Yes |
