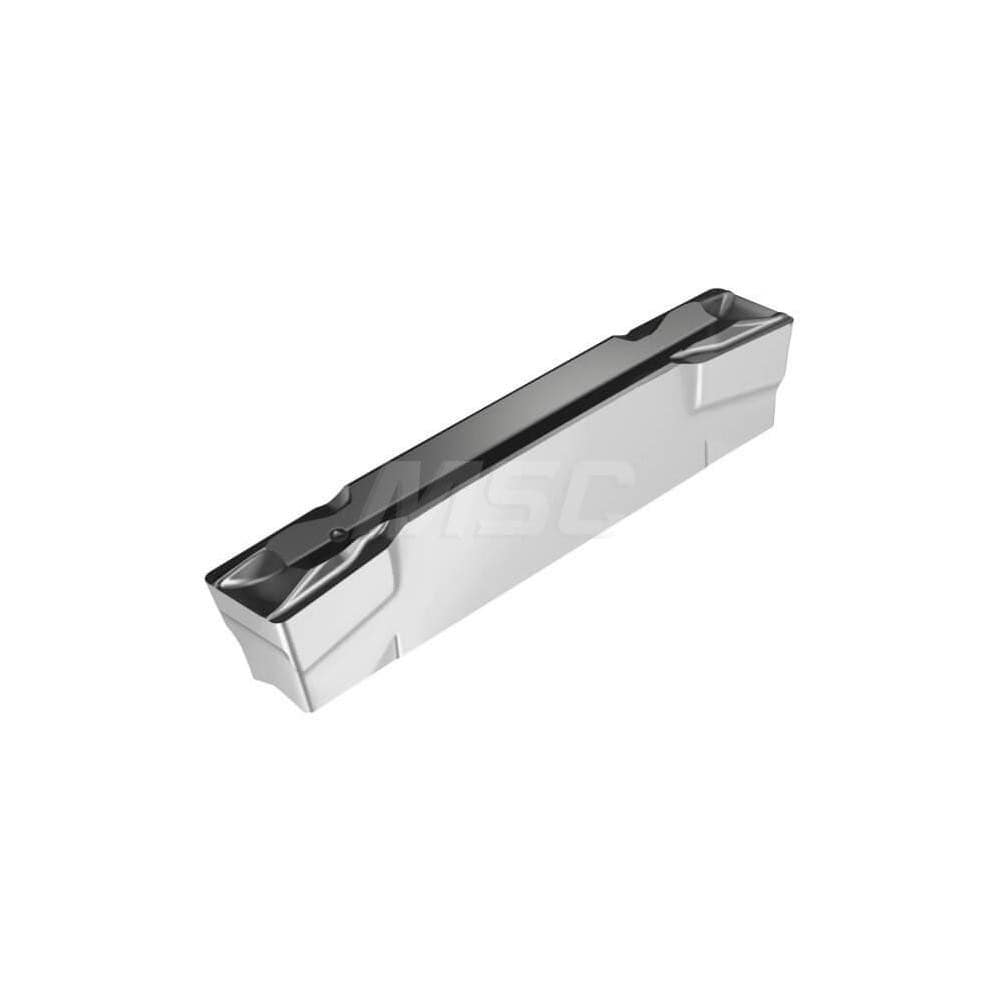

Grooving Insert: GX16UF8 WSM23S, Solid Carbide Al Finish, Neutral, 0.167″ Cutting Width, Series Tiger-tec Silver
Item #: 94645678
Brand: Walter
Model #: 7319512
Product Specifications
| Insert Style | GX16 |
| Insert Size Code | 3E425N02 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM23S |
| Cutting Width (Decimal Inch) | 0.1670 |
| Maximum Depth of Cut (mm) | 2.20 |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0080 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Recessing |
| Series | Tiger-tec Silver |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6300 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | GX163E425N02UF8 WSM23S |
| Iso Code | GX163E425N02UF8 WSM23S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | GX16-3E425N02-UF8 WSM23S |
| Chip Breaker | UF8 |
| Coating/Finish | Al |
