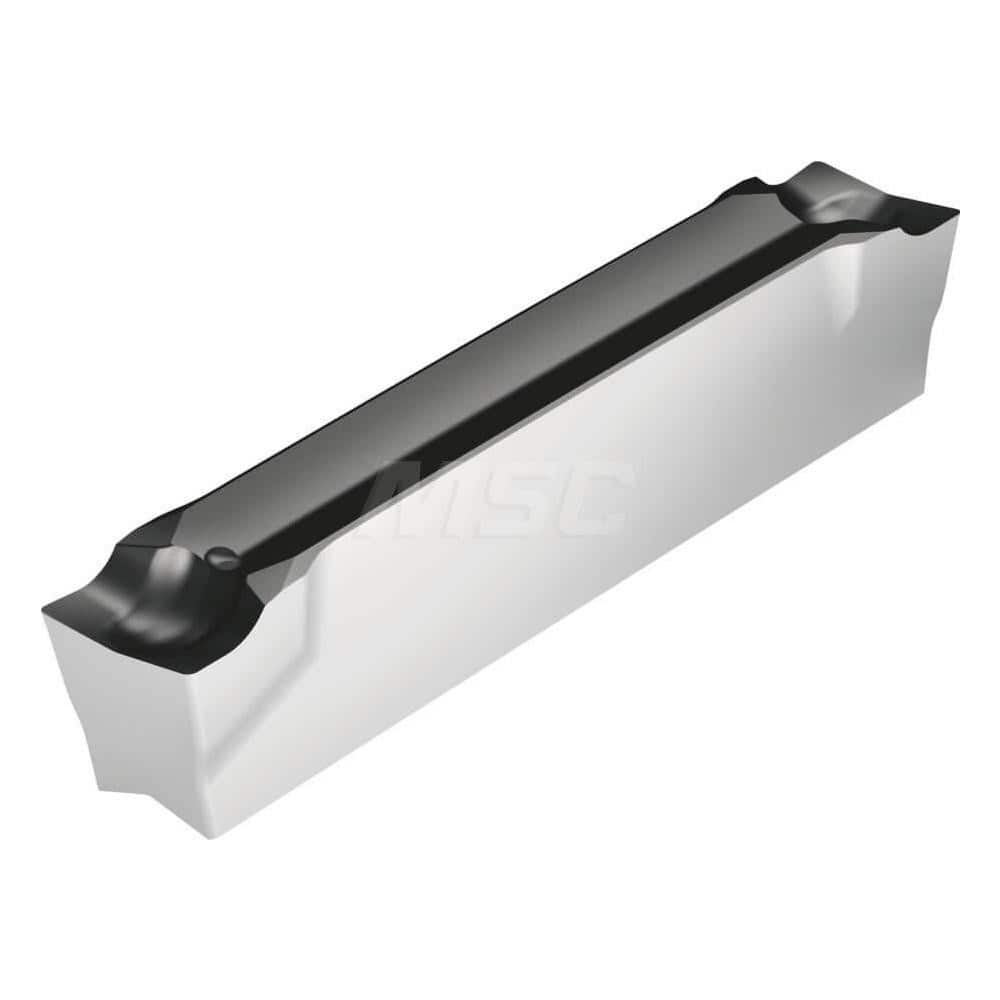

Grooving Insert: GX34CF5 WSM33S, Solid Carbide Al Finish, Left Hand, 0.118″ Cutting Width, Series Tiger-tec Silver
Item #: 94644713
Brand: Walter
Model #: 7318904
Product Specifications
| Insert Style | GX34 |
| Insert Size Code | 2E300L6 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM33S |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 32.00 |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0120 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | Tiger-tec Silver |
| Coating Process | PVD |
| Rake Angle | 10.00 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | GX342E300L6CF5 WSM33S |
| Iso Code | GX342E300L6CF5 WSM33S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | GX34-2E300L6-CF5 WSM33S |
| Chip Breaker | CF5 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1180 |
| Coating/Finish | Al |
