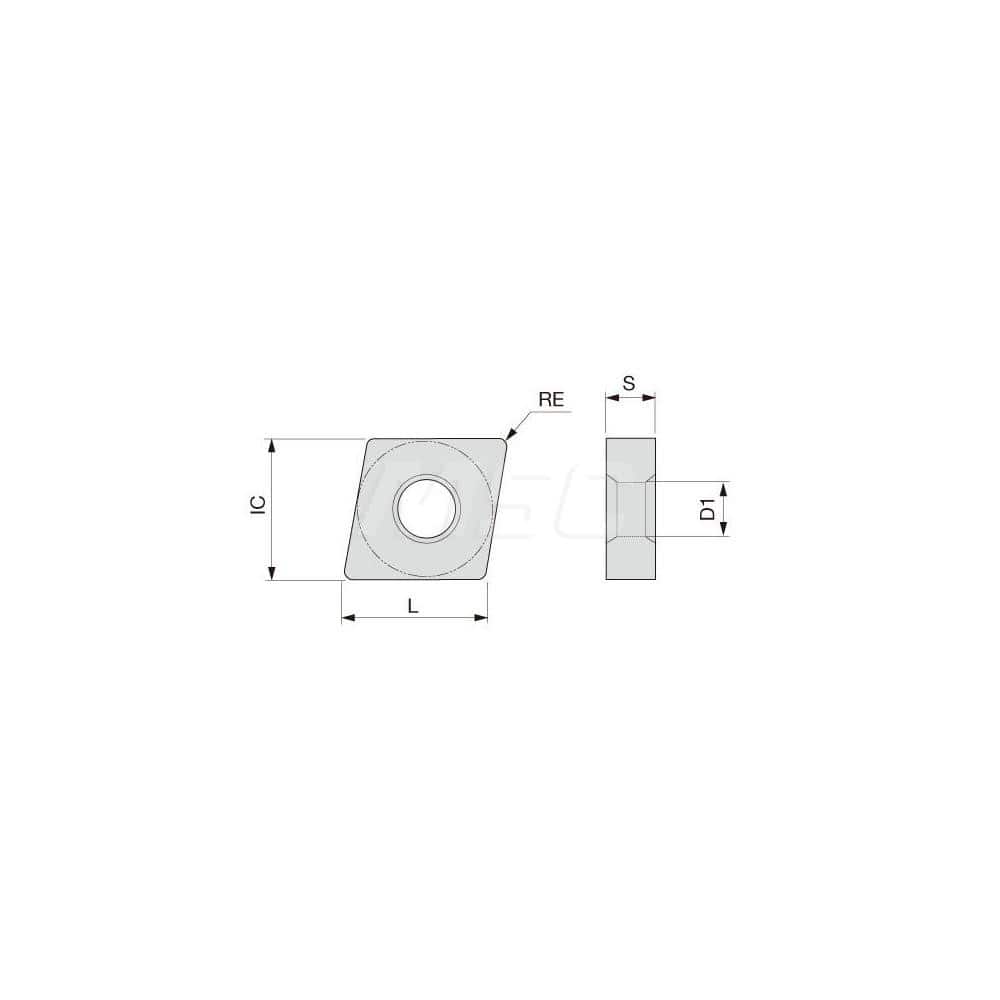

Turning Insert: CNMG332ESW T9225, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Diamond, Series CNMG
Item #: 94266293
Brand: Tungaloy
Model #: 6780646
Product Specifications
| Insert Style | CNMG |
| Insert Size Code | 332 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | T9225 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNMG |
| Coating Process | CVD |
| Rake | Negative |
| Wiper Edge | Yes |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | CNMG332ESWT9225 |
| Iso Code | CNMG090408E-SW T9225 |
| Chip Breaker | SW |
| Coating/Finish | TiCN; TiN; Al2O3 |
