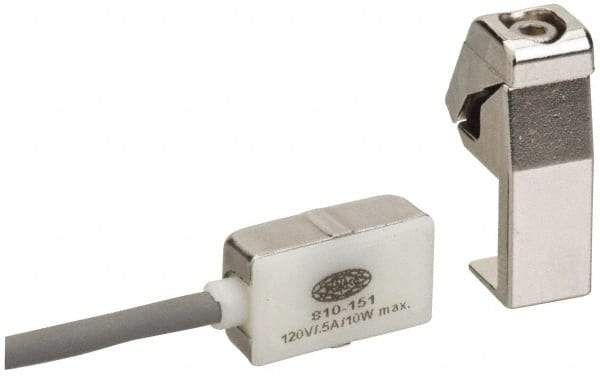

De-Sta-Co - SPST Output, Normally Open, Reed, MOV & LED Sensor, 0.5 Max Amps, 5 to 120 Volts, Power Clamp Switch - 3.5 Volts Max Drop, AC/DC Current, 0.93" Long x 0.53" Wide x 0.37" High, 9 Ft Long Wire
Item #: 94187119
Brand: De-Sta-Co
Model #: 810151
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Output Type | SPST |
| Contact Type | Normally Open |
| Sensor Style | Reed, MOV, LED |
| Maximum Amperage | 0.50 |
| Minimum Amperage | 0.0050 |
| Maximum Watts | 10.00 |
| Voltage | 5 to 120 |
| Maximum Voltage Drop | 3.50 |
| Current Type | AC/DC |
| Overall Length (Decimal Inch) | 0.9300 |
| Overall Width (Decimal Inch) | 0.5300 |
| Overall Height (Decimal Inch) | 0.3700 |
| Wire Length (Feet) | 9.00 |
| Product Compatibility | Pneumatic Power Clamps w/ an -MR option |
