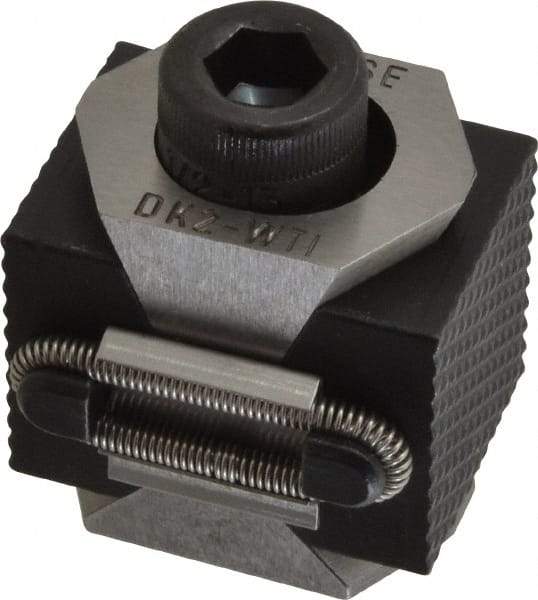

Mitee-Bite - 20,000 Lb Holding Force Double Vise Wedge Clamp - 1.65" Wide x 1.18" Deep x 1.18" High Base, 48 to 52 HRC, 1.65 to 1.93" Jaw Spread, 110 Lb/Ft Torque, 1/2-13 Screw Thread
Item #: 94121167
Brand: Mitee-Bite
Model #: 47150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Wedge Clamp Style | Vise |
| Single or Double Wedge | Double |
| Screw Thread Size | 1/2-13 |
| Machinable | No |
| Holding Force (Lb.) | 20000.00 |
| Torque (Ft/Lb) | 110.00 |
| Base Height (Decimal Inch) | 1.1800 |
| Base Width (Decimal Inch) | 1.6500 |
| Base Depth (Decimal Inch) | 1.1800 |
| Jaw Hardness (HRC) | 48 to 52 |
| Minimum Jaw Spread (Decimal Inch) | 1.6500 |
| Optimum Jaw Spread (Decimal Inch) | 1.7700 |
| Maximum Jaw Spread (Decimal Inch) | 1.9300 |
| Projection From Base (Decimal Inch) | 0.2000 |
| Overall Width (Decimal Inch) | 1.6500 |
| Includes | Mounting Screw |
