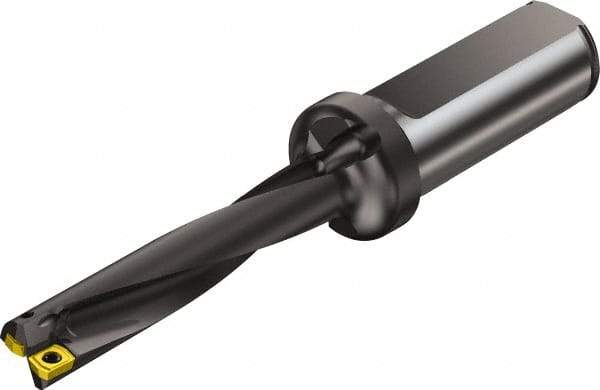

Sandvik Coromant - 129mm Max Drill Depth, 5xD, 25mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Flange Shank
Item #: 93870913
Brand: Sandvik Coromant
Model #: 5765370
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 25.00 |
| Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Depth (mm) | 129.00 |
| Maximum Drill Depth (Decimal Inch) | 5.0787 |
| Shank Type | Flange |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 27.00 |
| Overall Length/Projection (mm) | 205.00 |
| Overall Length/Projection (Decimal Inch) | 8.0709 |
| Insert Compatibility | 880-050305H-C-GM; 880-0503W05H-P-GM |
| Flute Length (mm) | 125.00 |
| Flute Length (Decimal Inch) | 4.9213 |
| Body Length (Decimal Inch) | 5.8488 |
| Body Length (mm) | 148.56 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.00 |
