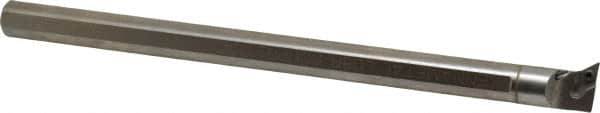

Kennametal - 0.73" Min Bore Diam, 1/2" Shank Diam, 7.928" OAL, L-SDUP Indexable Boring Bar - 0.93" Max Bore Depth, CP.. Insert Style, Screw Holding Method, Heavy Metal
Item #: 93755940
Brand: Kennametal
Model #: 3331073
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Shank Type | Weldon Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 3.2500 |
| Series | FlashHeli |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | Slotting; Ramping; Helical |
| Cutter Style | FHM90 E90A |
| Head Length (Decimal Inch) | 0.7500 |
| Weldon Flat | Yes |
| Insert Compatibility | APKT 1003 |
| MSC/Manufacturer Number | L08R-SDUPR/L2 |
| Toolholder Style | L-SDUP |
| Toolholder Material | Heavy Metal |
| Through Coolant | Yes |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Series | Screw-On |
| Rake Angle | 0 |
| Rake | Neutral |
| Overall Length (Decimal Inch) | 7.9280 |
| Multi-Use Tool | No |
| Minimum Bore Diameter (Decimal Inch) | 0.7300 |
| Maximum Bore Depth (Decimal Inch) | 0.9300 |
| Lead Angle | -3 |
| Insert Thickness (Inch) | 3/32 |
| Insert Compatibility | CP.. |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw |
| Hand of Holder | Right Hand |
| Coolant Hole Diameter (Decimal Inch) | 0.1560 |
| Complete Insert Compatibility | DP.. 21.51 |
| Center to Cutting Edge (Decimal Inch) | 0.4370 |
