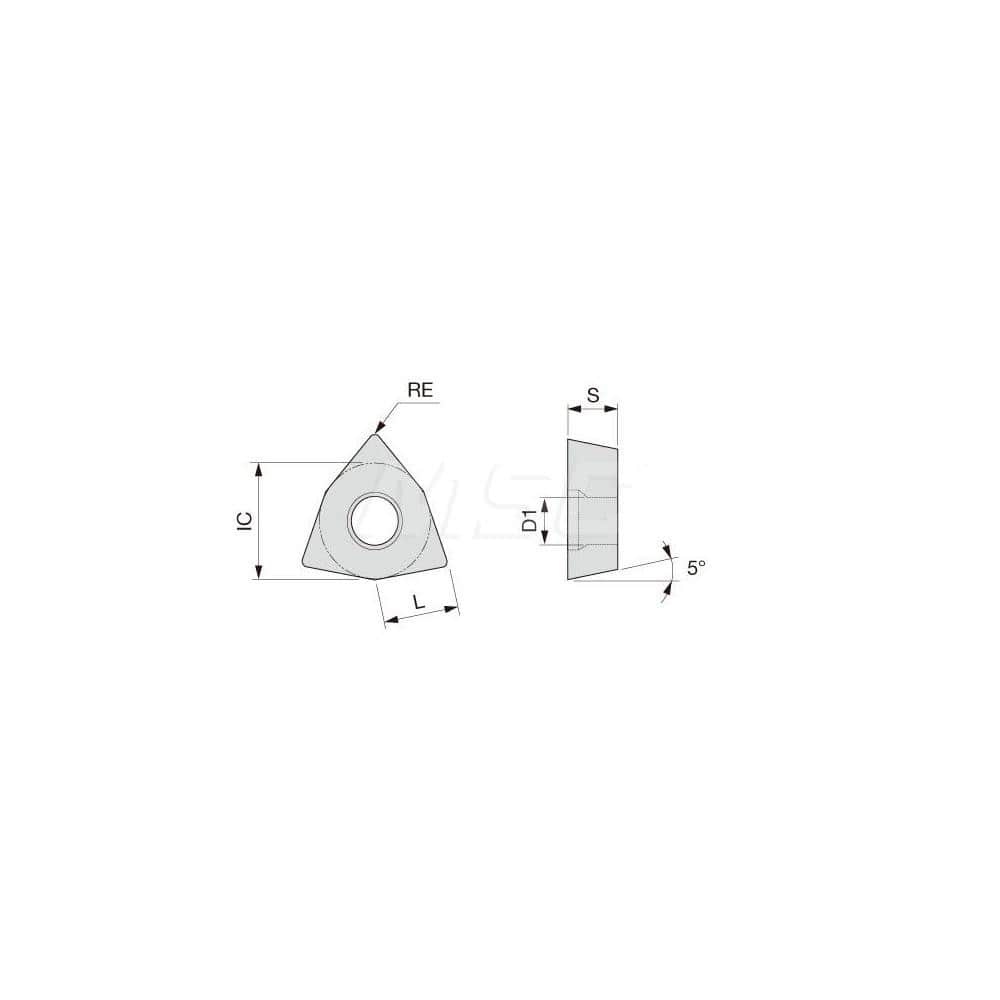

Turning Insert: WBGT520.5L-W08 GH110, Solid Carbide TiCNO Finish, Left Hand, 0.0080″ Corner Radius, 80.0 ° N/A Trigon, Series WBGT
Item #: 93503894
Brand: Tungaloy
Model #: 6809532
Product Specifications
| Insert Style | WBGT |
| Insert Size Code | 520.5 |
| Insert Shape | Trigon |
| Insert Material | Solid Carbide |
| Manufacturer Grade | GH110 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.0630 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 80.0 |
| Relief Angle | 5 |
| Series | WBGT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | WBGT520.5LW08GH110 |
| Iso Code | WBGT520.5L-W08 GH110 |
| Chip Breaker | W08 |
| Coating/Finish | TiCNO |
