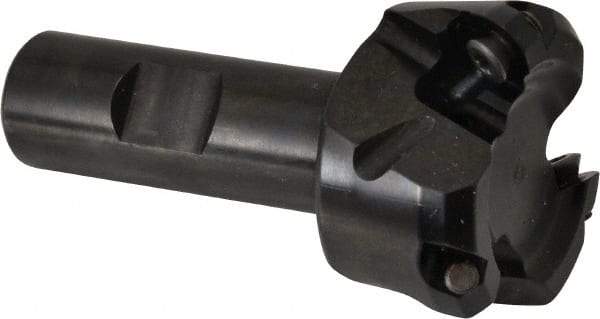

Kennametal - 47° Lead Angle, 1.8560" Max Cut Diam, 1-1/2" Min Cut Diam, 0.138" Max Depth of Cut, Indexable Chamfer & Angle End Mill - 3 Inserts, OF.T 53AF.N.. Insert Style, 77.4mm OAL, Straight Shank
Item #: 93274504
Brand: Kennametal
Model #: 3093627
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Inch) | 1-1/2 |
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.8560 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 47 |
| Overall Length (mm) | 77.40 |
| Overall Length (Decimal Inch) | 3.0470 |
| Insert Style | OF.T 53AF.N.. |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | KSOM |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | Yes |
| Maximum RPM | 16710 |
| Coolant Hole Diameter (Decimal Inch) | 0.1970 |
