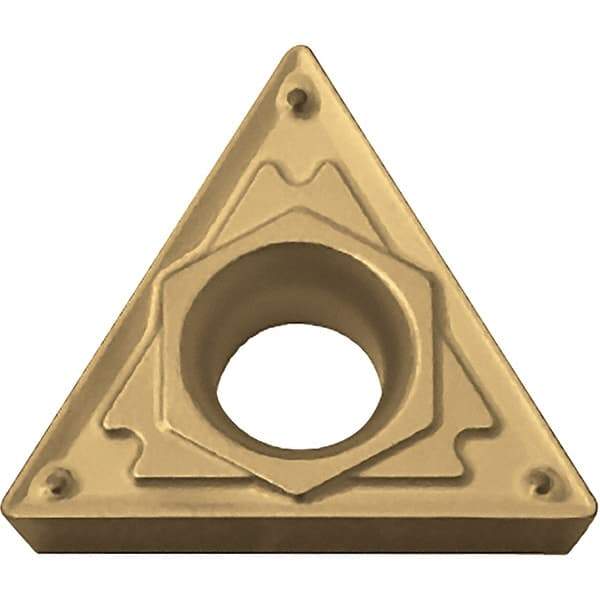

Kyocera - TCMT2151 HQ Grade CA5515 Carbide Turning Insert - 60° Included Angle, TiCN/Al2O3/TiN Finish, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 93250306
Brand: Kyocera
Model #: 8818673
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 2151 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | CA5515 |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | Micro Columnar |
| Chip Breaker | HQ |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | TCMT110204HQ |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Insert Hand | Neutral |
