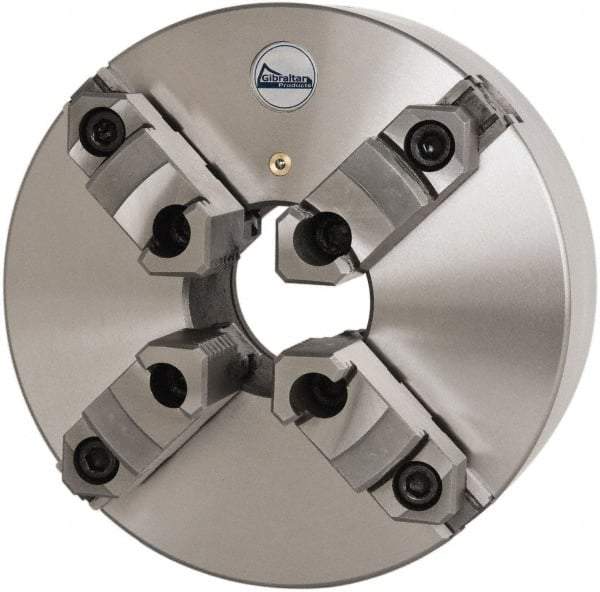

Gibraltar - 4 Jaws, 10" Diam, Self Centering Manual Lathe Chuck - Plain Back Mount Spindle, 3.1496" Through Hole Diam, 0.0016" Axial Runout, 0.0016" Radial Runout, Cast Iron
Item #: 93221042
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
| Product Specifications | |
|---|---|
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 10 |
| Number of Jaws | 4 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 80.00 |
| Through-Hole Diameter (Decimal Inch) | 3.1496 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Nonreversible Jaws |
| Number of Jaw Pieces | One-Piece |
| Chuck Diameter (mm) | 254.00 |
| Chuck Diameter (Inch) | 10 |
| Adjustable | No |
| Axial Runout (Decimal Inch) | 0.0016 |
| Radial Runout (Decimal Inch) | 0.0016 |
| TIR Repeatability (Decimal Inch) | 0.0032 |
| Body Length (mm) | 136.00 |
| Includes | (2) Sets of Solid Jaws |
