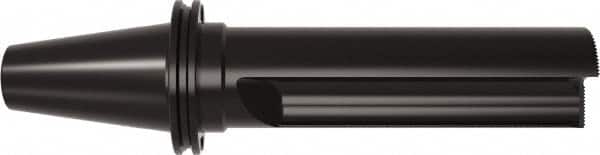

Allied Machine and Engineering - 10" Max Drill Depth, 3.5xD, 2.6" Diam, Indexable Insert Drill - 3 Inserts, CAT50 Taper Shank
Item #: 92986041
Brand: Allied Machine and Engineering
Model #: R44X35-CV50
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | R |
| Drill Diameter (Decimal Inch) | 2.6000 |
| Maximum Drill Depth (Decimal Inch) | 10.0000 |
| Maximum Drill Depth (Inch) | 10 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Cutting Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Drill Depth by Diameter Ratio | 3.5xD |
| Number of Drill Inserts | 3 |
| Maximum Drill Diameter (Decimal Inch) | 2.8000 |
| Insert Compatibility | OP-05T308-1H; OP-05T308-1P; OP-05T308-1T; OP-05T308-2H; OP-05T308-2P; OP-05T308-A; OP-05T308-H; OP-05T308-HHR; OP-05T308-N; OP-05T308-P; OP-05T308-PHR; OP-05T308-T |
| Body Length (Decimal Inch) | 12.6250 |
| Series | Revolution Drill |
