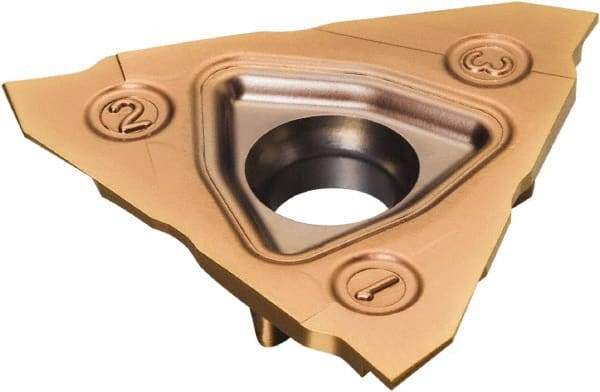

Sandvik Coromant - UN123U3 RS 8mm Cutting Width Carbide Grooving Insert - 1.8mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiAlN Finish
Item #: 92922962
Brand: Sandvik Coromant
Model #: 5737087
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123U3 |
| Insert Size | U |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0710 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.64 |
| Cutting Height (Decimal Inch) | 0.2220 |
| Insert Seat Size | U |
| Chipbreaker | RS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Minimum Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.4130 |
| Series | CoroCut 3 |
| Rake | Positive |
| ISO Number | N123U3-0080-RS 1125 |
| Manufacturers Catalog Number | N123U3-0080-RS 1125 |
| Overall Width (Decimal Inch) | 0.0320 |
| Insert Thickness (Decimal Inch) | 0.2220 |
