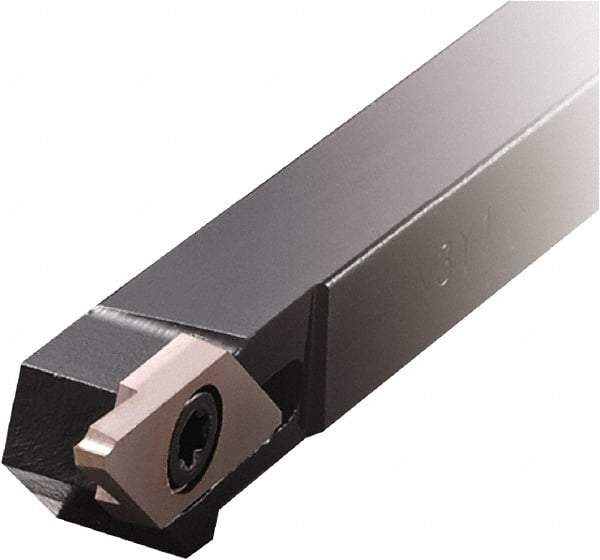

Kyocera - KTKFL, Left Hand Cut, TKF12R/L... Insert, Indexable Cutoff Toolholder - 0.236 Max Depth of Cut, 1/2" Shank Width, 1/2" Shank Height, 4-3/4" OAL
Item #: 92887793
Brand: Kyocera
Model #: 8835635
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Series | KTKF |
| Toolholder Style | KTKFL |
| Insert Compatibility | TKF12R/L... |
| Overall Length (Decimal Inch) | 4.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Through Coolant | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5000 |
| Head Height (Decimal Inch) | 0.5000 |
| Height to Shank Top (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | TKF12R/L 050-NB; TKF12R/L 050-NB-20DR; TKF12R/L 050-S; TKF12R/L 050-S-16DR; TKF12R/L 070-NB; TKF12R/L 070-NB-20DR; TKF12R/L 070-S; TKF12R/L 070-S-16DR; TKF12R/L 100-NB; TKF12R/L 100-S; TKF12R/L 100-S-16DR; TKF12R/L 100-T; TKF12R/L 100-T-16DR; TKF12R/L 125 |
