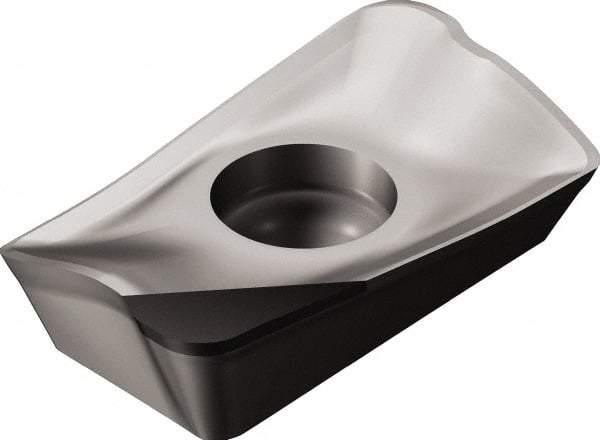

Sandvik Coromant - R390170408 NL Grade CD10 Diamond Tipped Milling Insert - Uncoated, 3/16" Thick, 9.6mm Inscribed Circle, 0.8mm Corner Radius
Item #: 92652718
Brand: Sandvik Coromant
Model #: 5745616
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | R390 |
| Insert Size | 170408 |
| Material | Diamond Tipped |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Width (mm) | 9.60 |
| Width (Decimal Inch) | 0.3780 |
| Length (mm) | 6.00 |
| Inscribed Circle (mm) | 9.60 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Coating Process | PCD |
| Included Angle | 0 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | NL |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R390-170408E-P6-NL CD10 |
