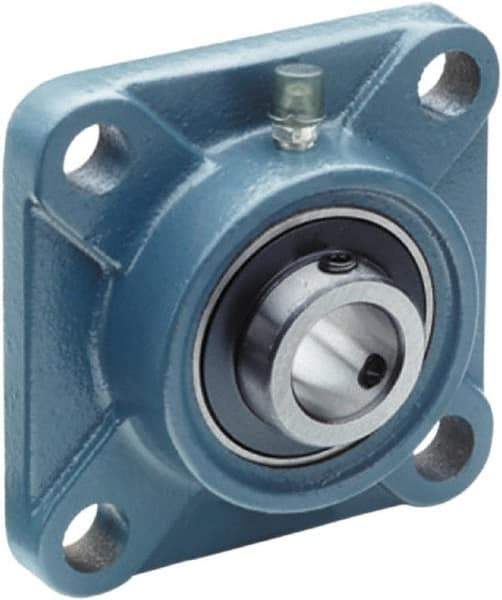

Tritan - 75mm ID, 200mm OAL x 78.5mm OAH 4-Bolt Flange - 11,128 Lb Static Cap, 14,837 Lb Dyn Cap, 6.26" Btw Mnt Hole Ctrs, 34mm Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92648575
Brand: Tritan
Model #: UCF215-75MM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (mm) | 75.0000 |
| Width (mm) | 200.00 |
| Overall Length (mm) | 200.0000 |
| Overall Height (mm) | 78.50000 |
| Static Load Capacity (Pounds) | 11128.00 |
| Dynamic Load Capacity (Pounds) | 14837 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 6.2600 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (mm) | 34.0000 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 5/8 |
| Metric Bolt Size | 16.0000 |
