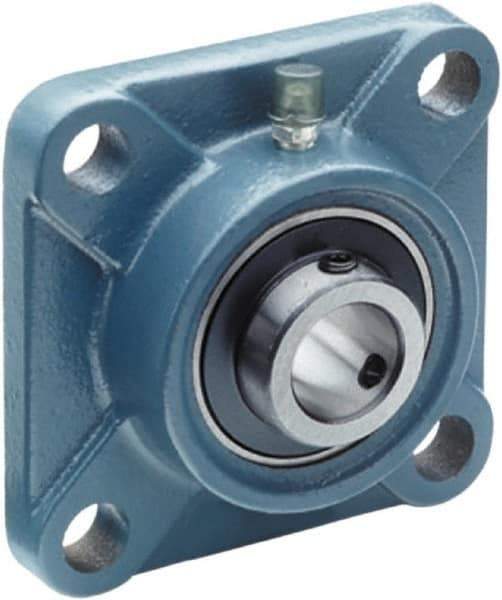

Tritan - 80mm ID, 208mm OAL x 83.3mm OAH 4-Bolt Flange - 12,185 Lb Static Cap, 16,074 Lb Dyn Cap, 6-1/2" Btw Mnt Hole Ctrs, 34mm Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92648567
Brand: Tritan
Model #: UCF216-80MM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (mm) | 80.0000 |
| Width (mm) | 208.00 |
| Overall Length (mm) | 208.0000 |
| Overall Height (mm) | 83.30000 |
| Static Load Capacity (Pounds) | 12185.00 |
| Dynamic Load Capacity (Pounds) | 16074 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 6.5000 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (mm) | 34.0000 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/4 |
| Metric Bolt Size | 20.0000 |
