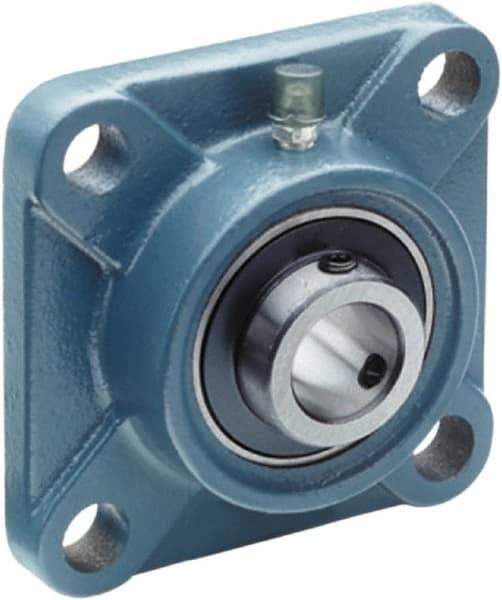

Tritan - 3-7/16" ID, 8.6614" OAL x 3.4488" OAH 4-Bolt Flange - 14,388 Lb Static Cap, 18,772 Lb Dyn Cap, 6.89" Btw Mnt Hole Ctrs, 1.4173" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92647841
Brand: Tritan
Model #: UCF217-55
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Decimal Inch) | 3.4375 |
| Inside Diameter (Inch) | 3-7/16 |
| Width (Decimal Inch) | 8.6614 |
| Overall Length (Decimal Inch) | 8.6614 |
| Overall Height (Decimal Inch) | 3.4488 |
| Static Load Capacity (Pounds) | 14388.00 |
| Dynamic Load Capacity (Pounds) | 18772 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 6.8900 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 1.4173 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/4 |
| Metric Bolt Size | 20.0000 |
