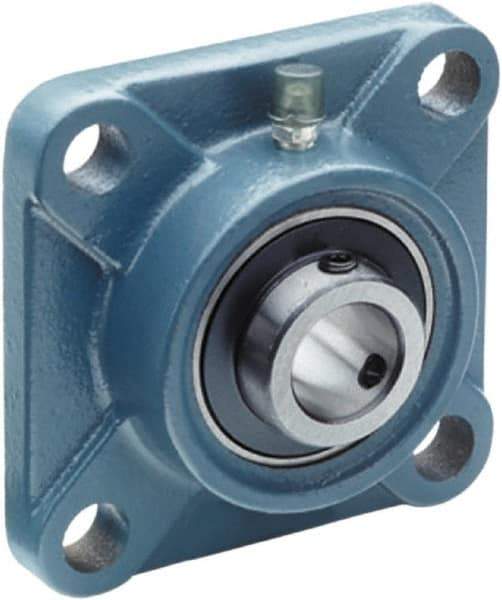

Tritan - 2-11/16" ID, 7.6" OAL x 2.97" OAH 4-Bolt Flange - 10,116 Lb Static Cap, 13,668 Lb Dyn Cap, 5.98" Btw Mnt Hole Ctrs, 1.22" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92645167
Brand: Tritan
Model #: UCF214-43
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Decimal Inch) | 2.6875 |
| Inside Diameter (Inch) | 2-11/16 |
| Width (Decimal Inch) | 7.6000 |
| Overall Length (Decimal Inch) | 7.6000 |
| Overall Height (Decimal Inch) | 2.9700 |
| Static Load Capacity (Pounds) | 10116.00 |
| Dynamic Load Capacity (Pounds) | 13668 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.9800 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 1.2200 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 5/8 |
| Metric Bolt Size | 16.0000 |
