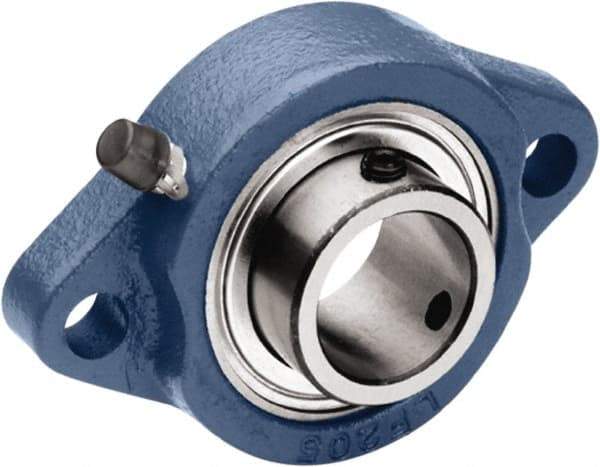

Tritan - 1" ID, 3.74" OAL x 1.2" OAH 2-Bolt Flange - 1,765 Lb Static Cap, 3,147 Lb Dyn Cap, 2.99" Btw Mnt Hole Ctrs, 0.43" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92645076
Brand: Tritan
Model #: SBLF205-16G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Bolt Flange |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Inside Diameter (Inch) | 1 |
| Width (Decimal Inch) | 2.5200 |
| Overall Length (Decimal Inch) | 3.7400 |
| Overall Height (Decimal Inch) | 1.2000 |
| Static Load Capacity (Pounds) | 1764.75 |
| Dynamic Load Capacity (Pounds) | 3147 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 2.9900 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 0.4300 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 5/16 |
| Metric Bolt Size | 8.0000 |
