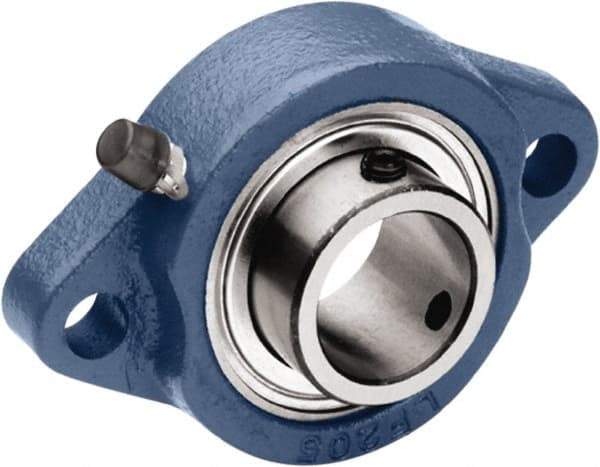

Tritan - 1/2" ID, 3.19" OAL x 1" OAH 2-Bolt Flange - 1,034 Lb Static Cap, 2,158 Lb Dyn Cap, 2-1/2" Btw Mnt Hole Ctrs, 0.37" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 92645001
Brand: Tritan
Model #: SBLF201-8G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2-Bolt Flange |
| Inside Diameter (Decimal Inch) | 0.5000 |
| Inside Diameter (Inch) | 1/2 |
| Width (Decimal Inch) | 2.2000 |
| Overall Length (Decimal Inch) | 3.1900 |
| Overall Height (Decimal Inch) | 1.0000 |
| Static Load Capacity (Pounds) | 1034.12 |
| Dynamic Load Capacity (Pounds) | 2158 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 2.5000 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 0.3700 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 1/4 |
| Metric Bolt Size | 6.0000 |
