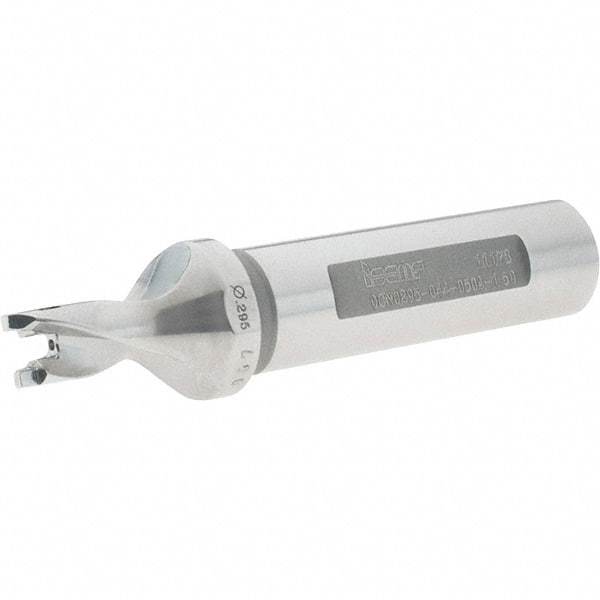

Iscar - 0.295" to 0.311" Diam, 1.5xD, 0.44" Max Depth, 1/2" Shank Diam, 2.76" OAL, Replaceable-Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 92489913 Toolholder, Series SumoCham
Item #: 92489913
Brand: Iscar
Model #: 3203329
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.2950 |
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.4400 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN A |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 0.9900 |
| Overall Length (Decimal Inch) | 2.7600 |
| Shank Length (Decimal Inch) | 1.7700 |
