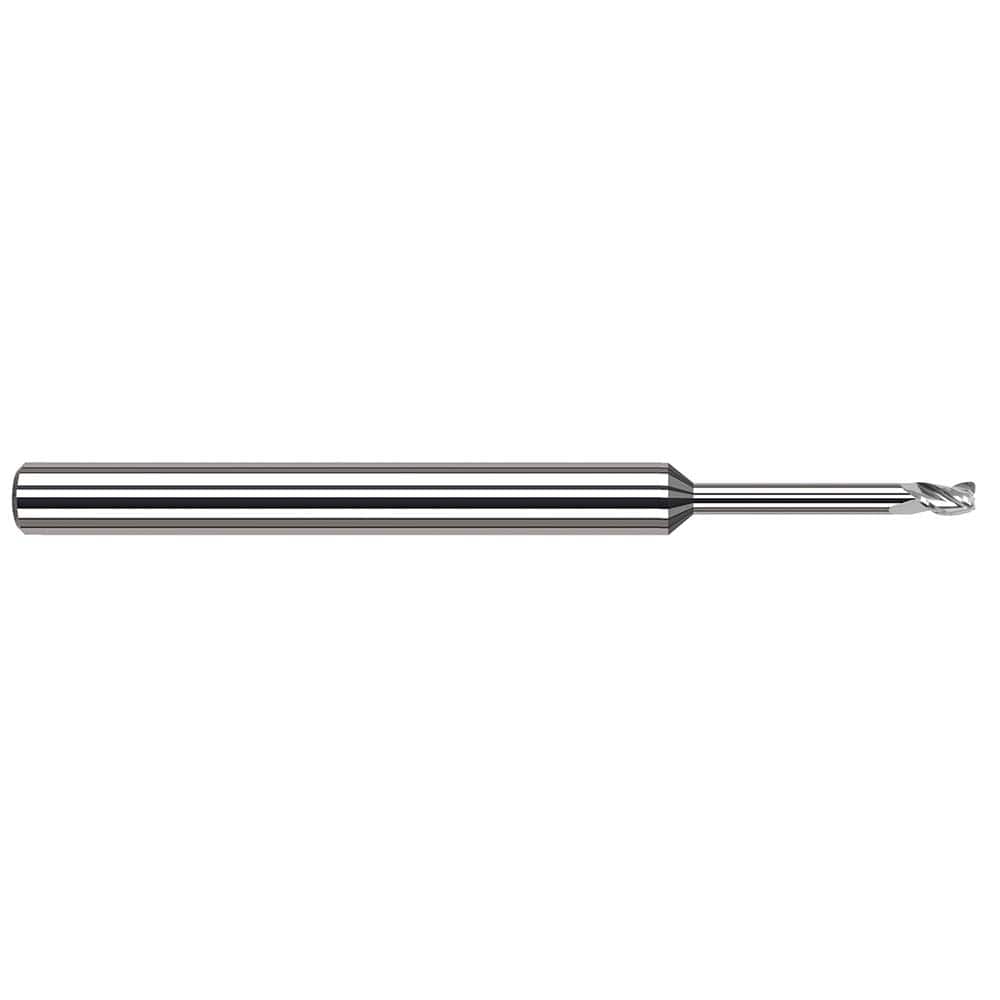

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/64 ; Mill Diameter (Decimal Inch): 0.0150 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0020 ; Number of Flutes: 3 ; Material: Solid Carbide
Item #: 92479013
Brand: Harvey Tool
Model #: 961315
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/64 ; Mill Diameter (Decimal Inch): 0.0150 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0020 ; Number of Flutes: 3 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/64 |
| Mill Diameter (Decimal Inch) | 0.0150 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0020 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Decimal Inch) | 0.0230 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 42 |
| Variable Helix | Yes |
| Reach Length (Inch) | 1/8 |
| Reach Length (Decimal Inch) | 0.1250 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for Aluminum Alloys - Corner Radius - Long Reach, Stub Flute |
