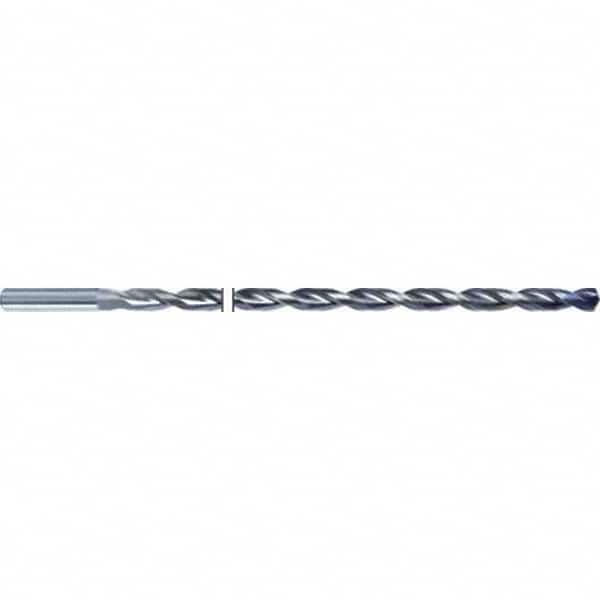

Screw Machine Length Drill Bit: 0.213″ Dia, 135 °, Solid Carbide TiAlN Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 6514
Item #: 92437276
Brand: Guhring
Model #: 9065140054100
Product Specifications
| Drill Bit Size (Wire) | #3 |
| Drill Bit Size (mm) | 5.41 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 135 |
| Flute Type | Parabolic |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.2130 |
| Overall Length (mm) | 280.00 |
| Overall Length (Decimal Inch) | 11.0236 |
| Shank Diameter (mm) | 6.00 |
| Series | 6514 |
| Maximum Drilling Depth (mm) | 231.89 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Drill Point Length (mm) | 240.00 |
| Flute By Diameter Ratio | 40xD |
| Drill Bit Diameter Tolerance | h7 |
| Flute Length (mm) | 240.00 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
