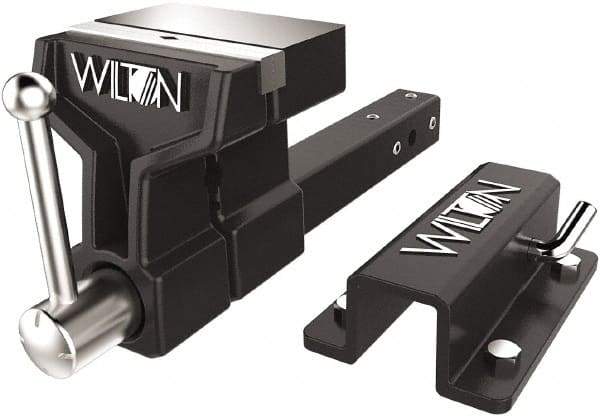

Wilton - 6" Jaw Width x 5-3/4" Jaw Opening Capacity, 5" Throat Depth, Bench & Pipe Combination Vise - 3/4 to 3" Pipe Capacity, Stationary Base, Bolt Down Attachment, Ductile Iron
Item #: 92421387
Brand: Wilton
Model #: 10010
Exact Tooling IR#: 04
Features and Benefits
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Ductile iron offers good vibration resistance, high strength, high durability and heat resistance
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Width (Decimal Inch) | 6.0000 |
| Jaw Opening Capacity (Inch) | 5-3/4 |
| Jaw Opening Capacity (Decimal Inch) | 5.7500 |
| Throat Depth (Inch) | 5 |
| Throat Depth (Decimal Inch) | 5.0000 |
| Maximum Pipe Capacity (Inch) | 3 |
| Maximum Pipe Capacity (Decimal Inch) | 3.0000 |
| Minimum Pipe Capacity (Inch) | 3/4 |
| Minimum Pipe Capacity (Decimal Inch) | 0.7500 |
| Base Motion Type | Stationary |
| Base Attachment Type | Bolt Down |
| Material | Ductile Iron |
| Model Number | 10010 |
| Safety/High Visibility | No |
| Anvil | Yes |
| Includes | Mounting Bracket |
| Additional Information | Vise can be mounted to bench or trailer hitch. Fits standard 2" Square Hitch. |
