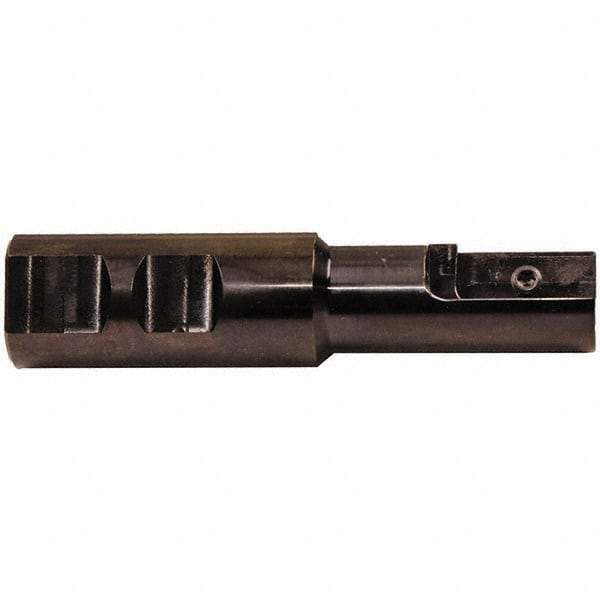

Emuge - 25mm Cut Diam, 50mm Max Hole Depth, 25mm Shank Diam, Internal Indexable Thread Mill - Insert Style GF6031, 15mm Insert Size, 2 Inserts, Toolholder Style GZ30, 106mm OAL
Item #: 92379437
Brand: Emuge
Model #: GZ301130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Hole Depth (mm) | 50.00 |
| Maximum Hole Depth (Decimal Inch) | 1.9685 |
| Insert Style | GF6031 |
| Insert Size (mm) | 15.00 |
| Insert Size (Decimal Inch) | 0.5906 |
| Toolholder Style | GZ30 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 106.00 |
| Overall Length (Decimal Inch) | 4.1732 |
| Number of Threading Inserts | 2 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Neck Diameter (mm) | 21.00 |
| Neck Diameter (Decimal Inch) | 0.8268 |
