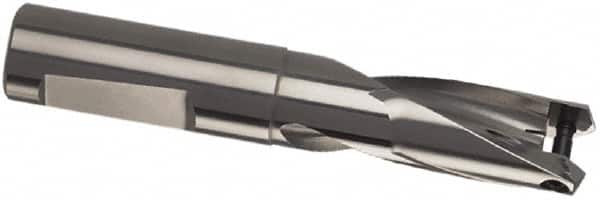

Guhring - 21 to 21.49mm Diam, 1.5xD, 36.4mm Max Depth, 25mm Shank Diam, 129mm Flute, 129mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 210 Seat Size, 1.5xD HT 800 WP Toolholder, Series 4106
Item #: 92375013
Brand: Guhring
Model #: 9041060210000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4106 |
| Minimum Drill Diameter (mm) | 21.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.8268 |
| Maximum Drill Diameter (mm) | 21.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.8461 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 36.40 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 210 |
| Toolholder Style | 1.5xD HT 800 WP |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 129.00 |
| Toolholder Coating | Nickel |
| Overall Length (mm) | 129.00 |
| Toolholder Material | High Speed Steel |
