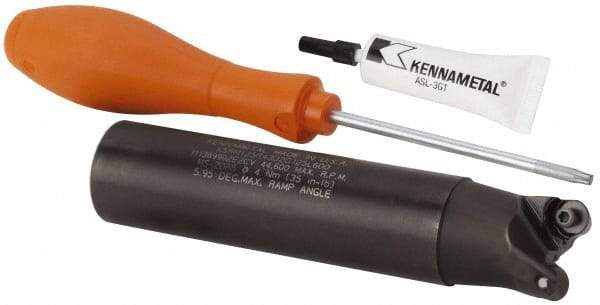

Kennametal - 1-1/4" Cutting Diam, 1-1/4" Shank Diam, 1-1/4" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RP.T 43.. Insert, KSRM Toolholder, Through Coolant
Item #: 92358373
Brand: Kennametal
Model #: 5175035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Cutter Inserts | 2 |
| Insert Style | RP.T 43.. |
| Toolholder Style | KSRM |
| Series | KSRM |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Diameter (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 19.05 |
| Head Length (mm) | 38.10 |
| Head Length (Inch) | 1-1/2 |
| Head Length (Decimal Inch) | 1.5000 |
| Shank Length (mm) | 114.30 |
| Shank Length (Decimal Inch) | 4.5000 |
| Maximum RPM | 44600 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
