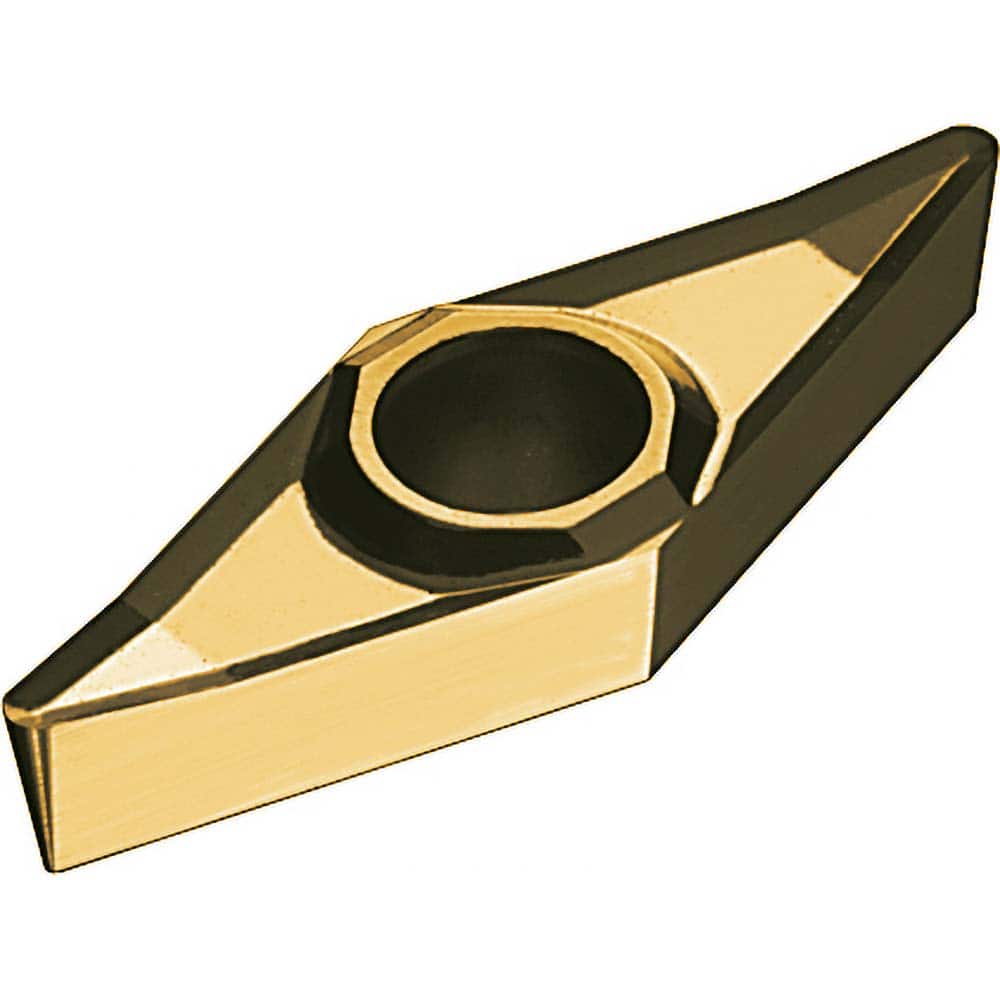

VCGT1.21.51FN-ALU AK10 Carbide Turning Insert Uncoated, Neutral, 6.92mm Long, 3.97mm Inscribed Circle, 0.4mm Corner Radius, 2.38mm Thick, 35° Diamond
Item #: 92194547
Brand: Arno
Model #: 28183
Product Specifications
| Insert Style | VCGT |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AK10 |
| Hole Diameter (Decimal Inch) | 2.2000 |
| Maximum Depth of Cut (mm) | 1.00 |
| Inscribed Circle (mm) | 3.97 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 7.00 |
| Coating Process | Uncoated |
| Rake | Positive |
| Manufacturers Catalog Number | VCGT 070204FN-ALU |
| Cutting Direction | Neutral |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Cutting Edge Style | Sharp |
| Style | VCGT |
| Industry Standard Number | VCGT 070204FN-ALU AK10 |
| Width (Mm - 2 Decimals) | 3.97 |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | Machining; Turning |
