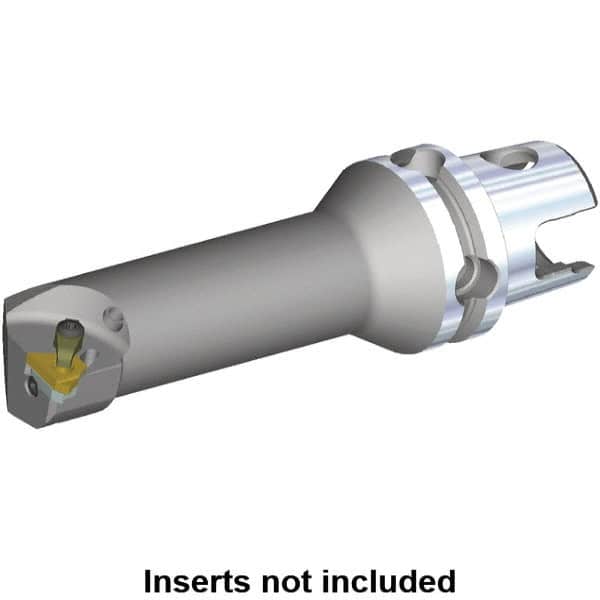

Kennametal - Insert Style LT 11NR, 70mm Head Length, Right Hand Cut, Internal Modular Threading Cutting Unit Head - System Size KM40TS, 9mm Center to Cutting Edge, Series LT Threading
Item #: 92176155
Brand: Kennametal
Model #: 3955466
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40TS |
| Series Name | LT Threading |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7559 |
| Insert Style | LT 11NR |
| Insert Holding Method | Clamp |
| Neck Diameter (mm) | 12.00 |
| Neck Diameter (Decimal Inch) | 0.4724 |
| Minimum Hole Diameter (mm) | 16.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.6299 |
| Maximum Hole Depth (mm) | 42.00 |
| Maximum Hole Depth (Decimal Inch) | 1.6535 |
