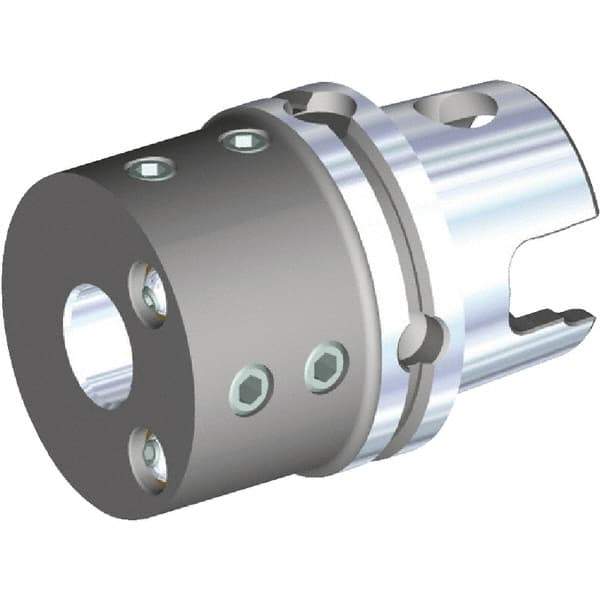

Kennametal - 50mm Bore Diam, 90mm Body Diam x 130mm Body Length, Boring Bar Holder & Adapter - 0.315" Screw Thread Lock, 95mm Bore Depth, Internal & External Coolant
Item #: 92166834
Brand: Kennametal
Model #: 3897203
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 50.0000 |
| Bore Diameter (Decimal Inch) | 1.9685 |
| Connection Size | KM80ATC |
| Body Diameter (mm) | 90.00 |
| Body Diameter (Decimal Inch) | 3.5433 |
| Body Length (mm) | 130.00 |
| Body Length (Decimal Inch) | 5.1181 |
| Lock Screw Size (mm) | 8.00 |
| Lock Screw Size (Decimal Inch) | 0.3150 |
| Lock Screw Compatibility | MS-1947 |
| Bore Depth (mm) | 95.00 |
| Bore Depth (Decimal Inch) | 3.7402 |
| Coolant Type | Internal & External |
