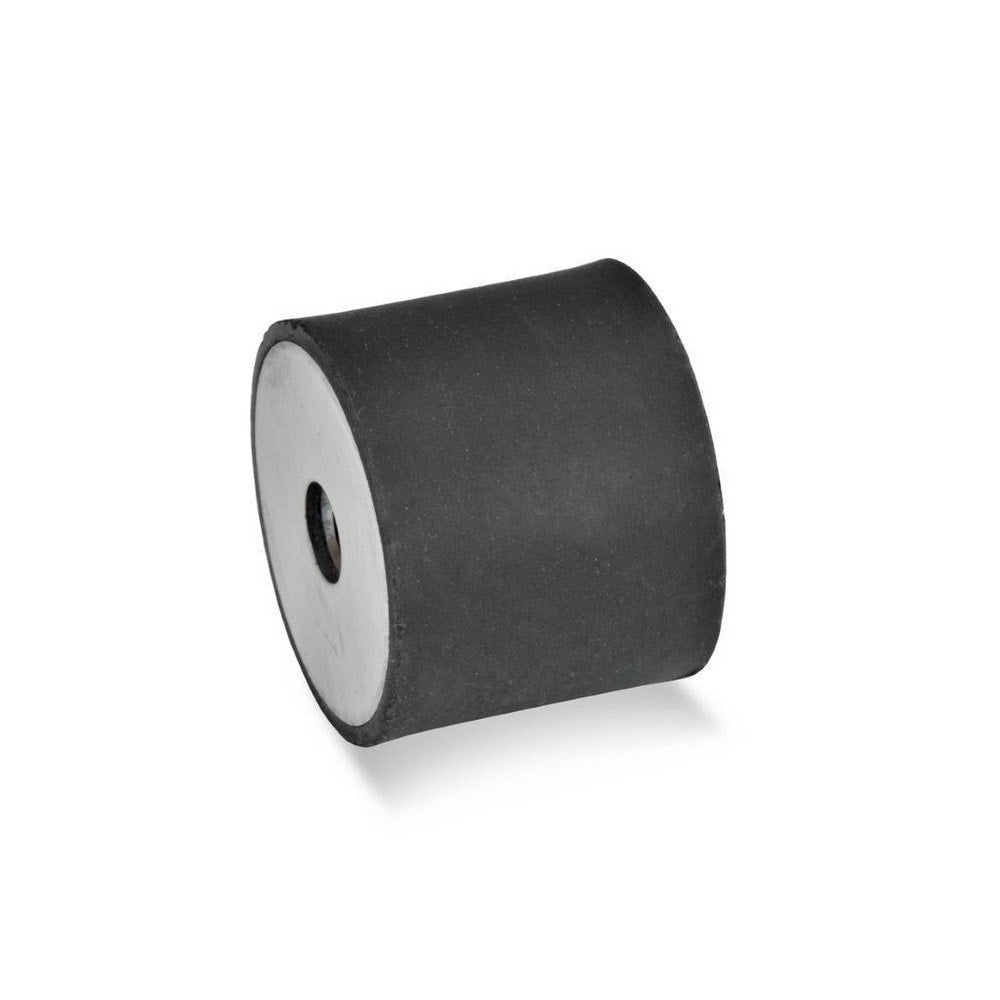

Vibration Isolators; Isolator Type: Plate/Plate; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 315.00 N; Top Diameter: 15.00; Bottom Diameter: 15; Thread Size: M4x0.7; Overall Width: 15 mm
Item #: 69303964
Brand: J.W. Winco
Model #: 451-15-10-M4-EE-55
Product Specifications
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 315.00 N |
| Top Diameter | 15.00 |
| Bottom Diameter | 15 |
| Thread Size | M4x0.7 |
| Overall Width | 15 mm |
| Overall Diameter | 15 mm |
| Deflection | 0.0800 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 4.0000 |
| Thread Pitch | 0.7 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 10 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Plate |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 315.00 N |
| Top Diameter | 15.00 |
| Bottom Diameter | 15 |
| Thread Size | M4x0.7 |
| Overall Width | 15 mm |
| Overall Diameter | 15 mm |
| Deflection | 0.0800 |
| Hardness Rating | Shore 55A |
| Mount Type | Plate |
| Shape | Round |
| Thread Depth | 4.0000 |
| Thread Pitch | 0.7 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 10 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 69303964 |
| Mfr Part # | 451-15-10-M4-EE-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
