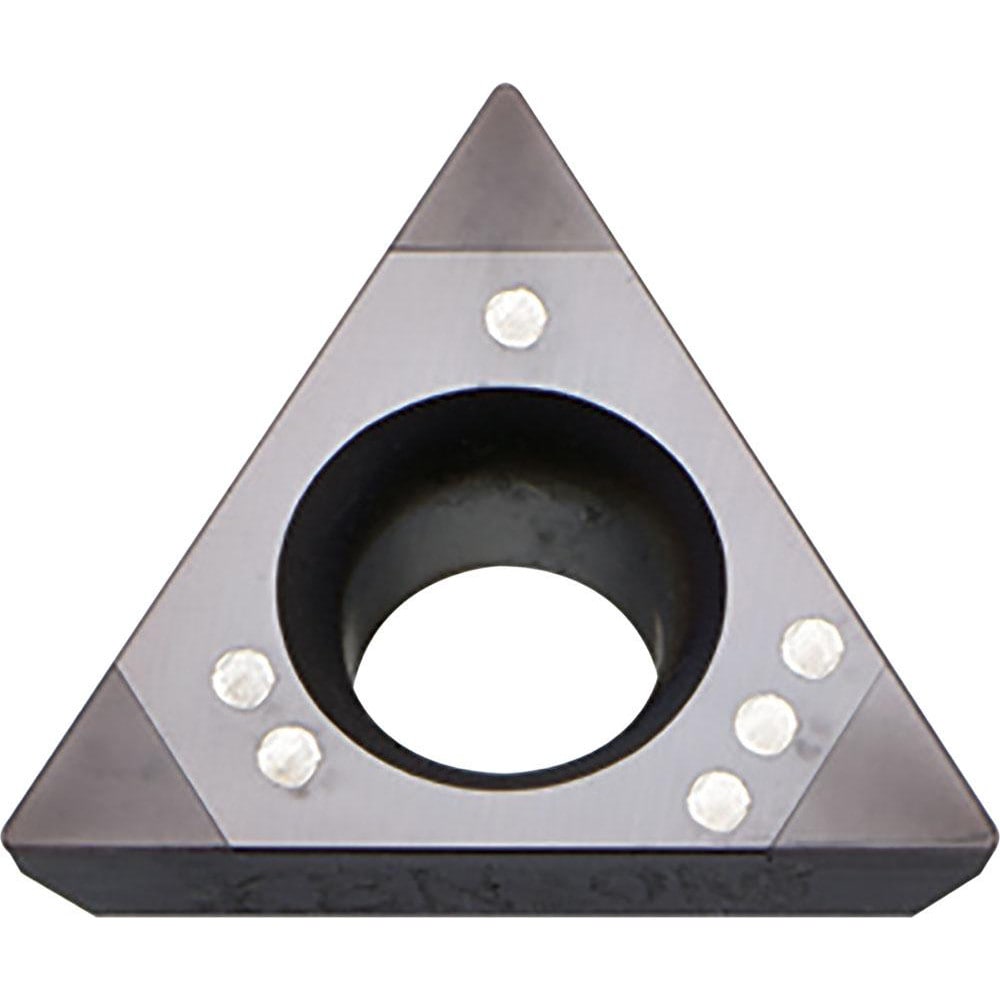

Turning Insert: TPGB222T00315MEKBN020, CBN
Item #: 72561103
Brand: Kyocera
Model #: TFC00040
Product Specifications
| ANSI Insert Code | TPGB222 |
| ISO Insert Code | TPGB110308 |
| Relief Angle | 11 |
| Insert Style | TPGB |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | CBN |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1299 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.30 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | TPGB110308T00815ME |
| Manufacturers Catalog Number | TPGB222T00315MEKBN020 |
| Chip Breaker | No Chip Breaker |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
| Tip Length (Decimal Inch) | 0.0709 |
| Tip Length (mm) | 1.80 |
| ANSI Size Code | 222 |
| ISO Size Code | 110308 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 222 |
| ANSI Insert Code | TPGB222 |
| ISO Insert Code | TPGB110308 |
| Relief Angle | 11 |
| Insert Style | TPGB |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | CBN |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1299 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.30 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | TPGB110308T00815ME |
| Manufacturers Catalog Number | TPGB222T00315MEKBN020 |
| Chip Breaker | No Chip Breaker |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
| Tip Length (Decimal Inch) | 0.0709 |
| Tip Length (mm) | 1.80 |
| ANSI Size Code | 222 |
| ISO Size Code | 110308 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 222 |
| MSC Part # | 72561103 |
| Mfr Part # | TFC00040 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
