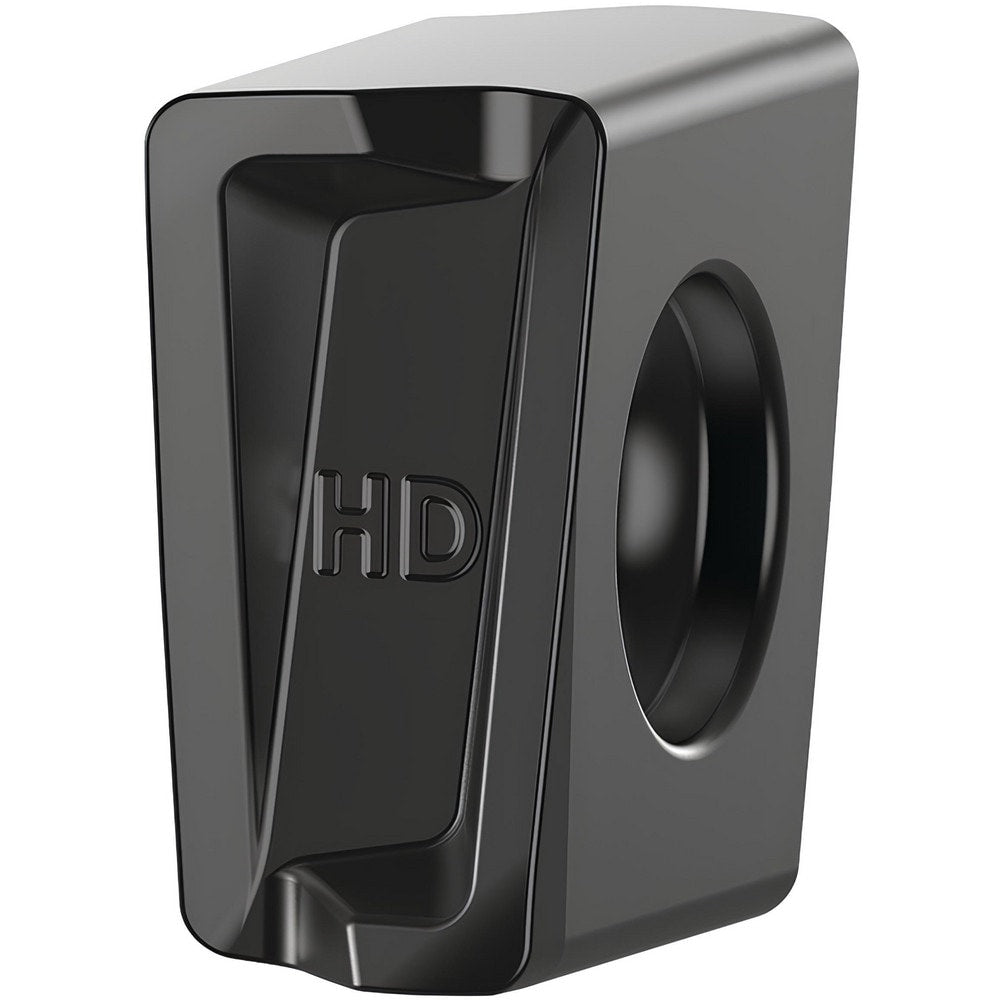

Milling Insert: LNGQ120608ERHDKT4 KCPK30, Solid Carbide
Item #: 67203935
Brand: Kennametal
Model #: 7009761
Product Specifications
| Insert Style | LNGQ |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 120608 |
| Material Grade | C5; C6; C1 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.5176 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4780 |
| Series | LNGQ |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | LNGQ120608ERHDKT4 |
| Iso Code | LNGQ120608ERHDKT4 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LNGQ120608ERHDKT4 |
| Cutter Series Compatibility | Mill 4-12 |
| Chip Breaker | HD |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 13.00 |
| Width (Decimal Inch - 4 Decimals) | 0.5176 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
| Insert Style | LNGQ |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | KCPK30 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 120608 |
| Material Grade | C5; C6; C1 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.5176 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4780 |
| Series | LNGQ |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | LNGQ120608ERHDKT4 |
| Iso Code | LNGQ120608ERHDKT4 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LNGQ120608ERHDKT4 |
| Cutter Series Compatibility | Mill 4-12 |
| Chip Breaker | HD |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 13.00 |
| Width (Decimal Inch - 4 Decimals) | 0.5176 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
| MSC Part # | 67203935 |
| Mfr Part # | 7009761 |
| Country of Origin Country of Origin is subject to change | Germany |
