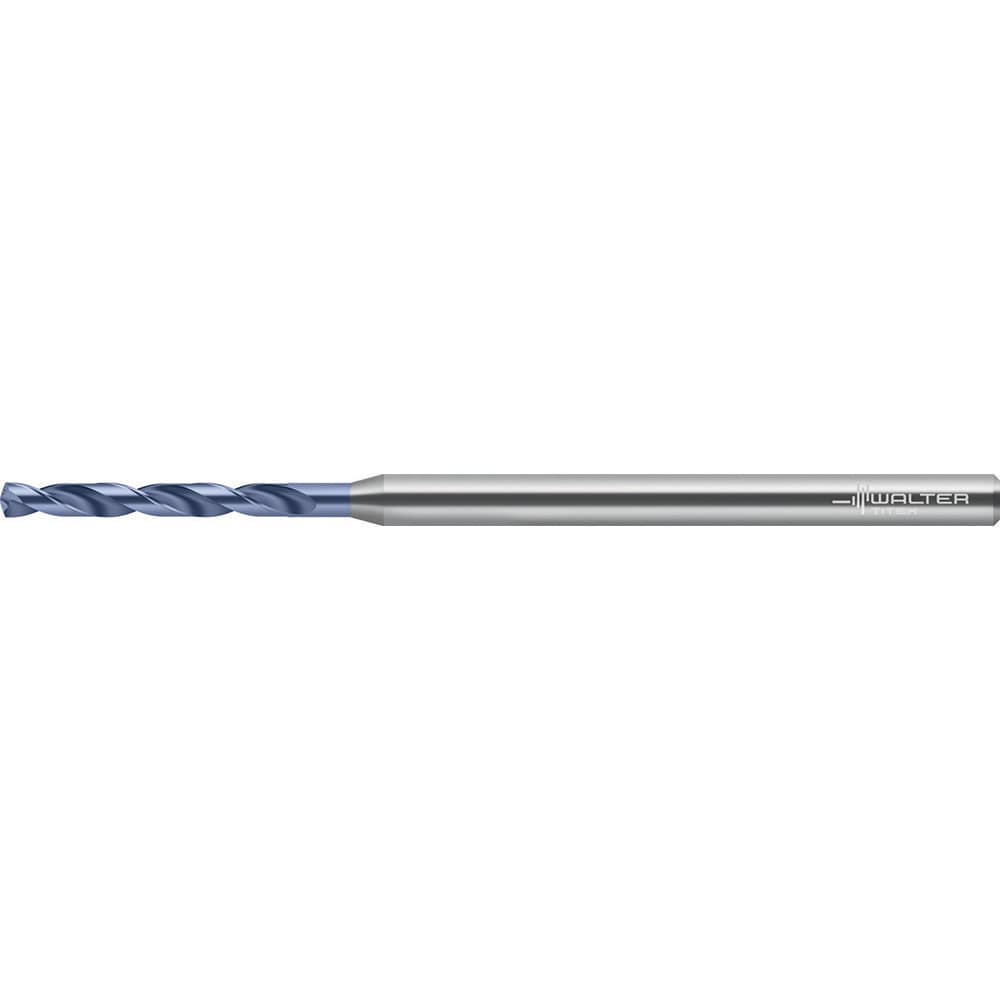

Micro Drill Bit: 2.40 mm Dia, (0.0945"), 140 deg, Solid Carbide
Item #: 67232835
Brand: Walter-Titex
Model #: 8184742
Product Specifications
| Drill Bit Size (mm) | 2.40 |
| Drill Bit Size (Decimal Inch) | 0.0945 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.7874 |
| Flute Length (mm) | 20.00 |
| Coating/Finish | AlCrN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 16.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.6299 |
| Number Of Flutes | 2 |
| Series | DB133 |
| Overall Length (Decimal Inch) | 2.3228 |
| Overall Length (mm) | 59.00 |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Tool Application | Through Hole Drilling; Blind Hole |
| Drill Bit Diameter Tolerance | m7 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.0000 |
| Shank Length (Decimal Inch) | 1.3780 |
| Shank Length (mm) | 35.000 |
| Flute By Diameter Ratio | 5xD |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
| Drill Bit Size (mm) | 2.40 |
| Drill Bit Size (Decimal Inch) | 0.0945 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 0.7874 |
| Flute Length (mm) | 20.00 |
| Coating/Finish | AlCrN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 16.00 |
| Maximum Drilling Depth (Decimal Inch) | 0.6299 |
| Number Of Flutes | 2 |
| Series | DB133 |
| Overall Length (Decimal Inch) | 2.3228 |
| Overall Length (mm) | 59.00 |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Tool Application | Through Hole Drilling; Blind Hole |
| Drill Bit Diameter Tolerance | m7 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.0000 |
| Shank Length (Decimal Inch) | 1.3780 |
| Shank Length (mm) | 35.000 |
| Flute By Diameter Ratio | 5xD |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
| MSC Part # | 67232835 |
| Mfr Part # | 8184742 |
| Country of Origin Country of Origin is subject to change | France |
