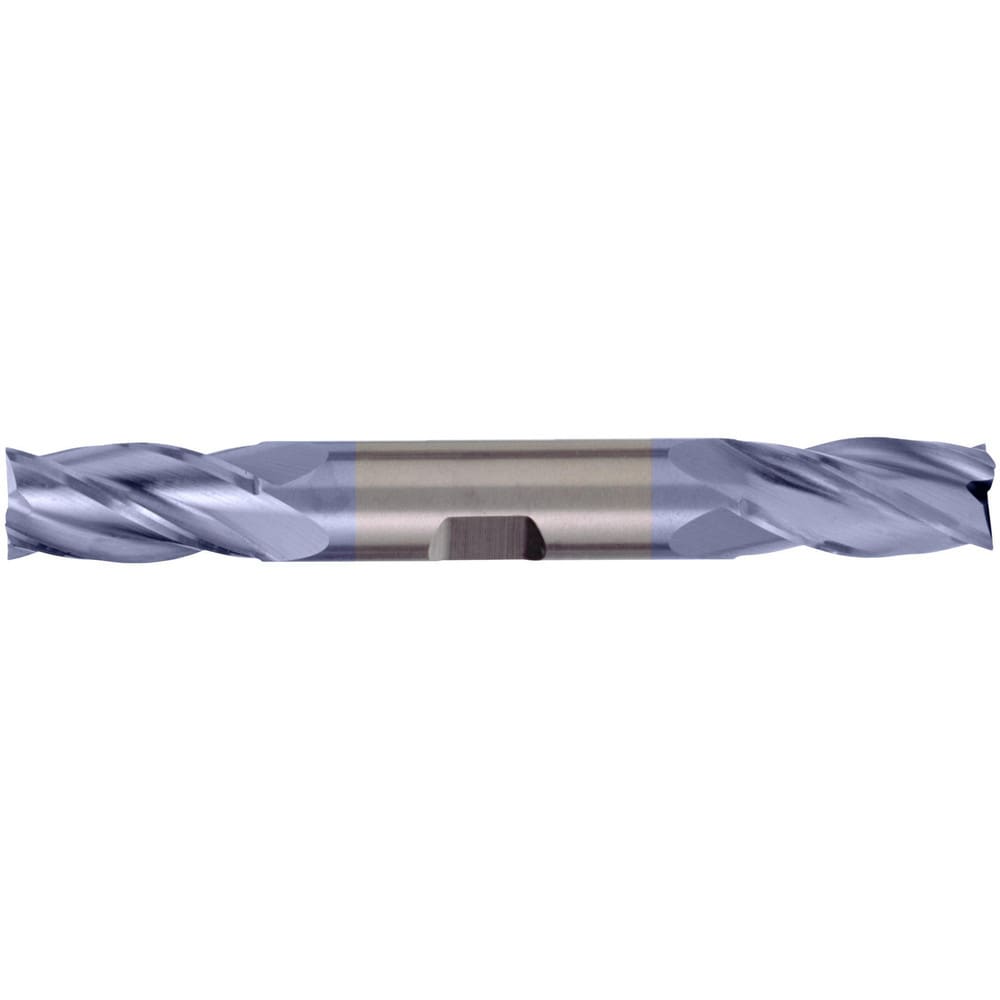

Square End Mill: 7/16" Dia, 7/8" LOC, 4 Flute, Solid Carbide
Item #: 67205450
Brand: Cleveland
Model #: C80286
Product Specifications
| Mill Diameter (mm) | 11.11 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Mill Diameter (Inch) | 7/16 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.8750 |
| Length of Cut (Inch) | 7/8 |
| Length of Cut (mm) | 22.22 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Double |
| Coating/Finish Family | TiAlN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coating/Finish | TiAlN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Sub Micrograin |
| Length Type | Regular |
| Series | CEM-DE-4-TA |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 11.11 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| Mill Diameter (Inch) | 7/16 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.8750 |
| Length of Cut (Inch) | 7/8 |
| Length of Cut (mm) | 22.22 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 101.60 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Double |
| Coating/Finish Family | TiAlN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coating/Finish | TiAlN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Sub Micrograin |
| Length Type | Regular |
| Series | CEM-DE-4-TA |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 67205450 |
| Mfr Part # | C80286 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
