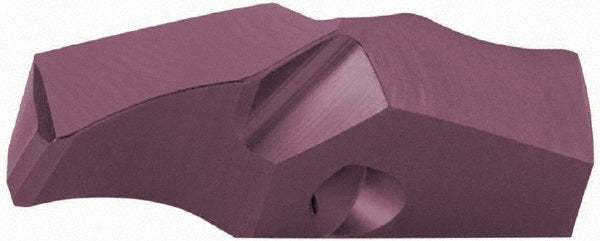

Replaceable Drill Tips: 2485 59/64" 140D FIREX, 0.9220" Dia, 23.42 mm Dia, 140 deg Point, FIREX
Item #: 72307473
Brand: Guhring
Model #: 9024850234200
Product Specifications
| Cutting Diameter (Inch) | 59/64 |
| Cutting Diameter (Decimal Inch) | 0.9220 |
| Cutting Diameter (mm) | 23.42 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | FIREX |
| Material Grade | K20/K40 |
| Series | 2485 |
| Insert Geometry | Relieved Cone |
| Insert Seat Size | 3.1 |
| Functional Length (Decimal Inch) | 0.2246 |
| Functional Length (mm) | 10.00 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel |
| Secondary Workpiece Material Code | M; N |
| Height (mm) | 10.00 |
| Overall Length/Projection (Decimal Inch) | 0.3940 |
| Web Thinning | Web-Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Screw; Clamp |
| Coolant Through | No |
| Flute Length (mm) | 6.00 |
| Point Type | Two Facet |
| Spiral Type | Regular Spiral |
| Style | 2485 |
| UNSPSC Code | 23242105 |
| Applications | Heat-Treatable Steel |
| Coating/Finish | nano-FIREX |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| Cutting Diameter (Inch) | 59/64 |
| Cutting Diameter (Decimal Inch) | 0.9220 |
| Cutting Diameter (mm) | 23.42 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | FIREX |
| Material Grade | K20/K40 |
| Series | 2485 |
| Insert Geometry | Relieved Cone |
| Insert Seat Size | 3.1 |
| Functional Length (Decimal Inch) | 0.2246 |
| Functional Length (mm) | 10.00 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel |
| Secondary Workpiece Material Code | M; N |
| Height (mm) | 10.00 |
| Overall Length/Projection (Decimal Inch) | 0.3940 |
| Web Thinning | Web-Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Screw; Clamp |
| Coolant Through | No |
| Flute Length (mm) | 6.00 |
| Point Type | Two Facet |
| Spiral Type | Regular Spiral |
| Style | 2485 |
| UNSPSC Code | 23242105 |
| Applications | Heat-Treatable Steel |
| Coating/Finish | nano-FIREX |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
| MSC Part # | 72307473 |
| Mfr Part # | 9024850234200 |
| Country of Origin Country of Origin is subject to change | Germany |
